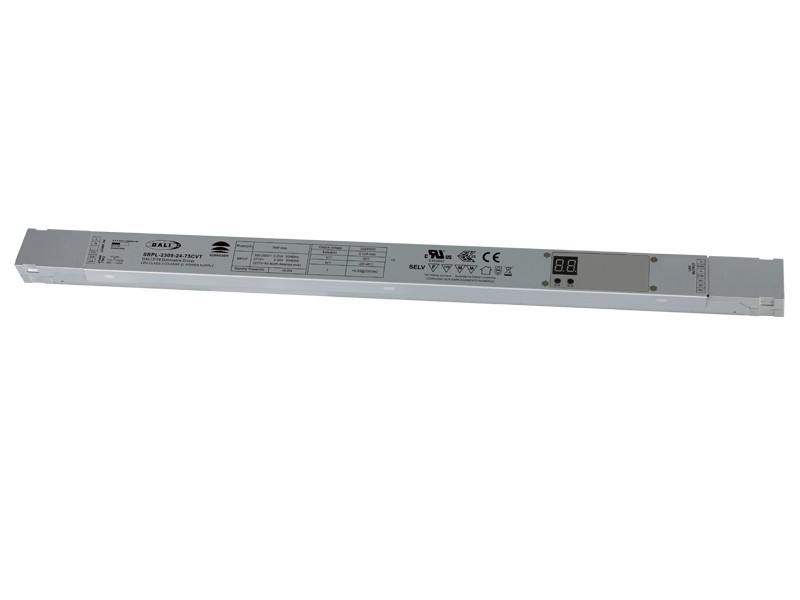

DALI-2 Certified Linear Metal Casing 75W Dimmable LED Driver SRPL-2309-24-75CVT

Features

SRPL-2309-24-75CVT is a DALI-2 certified Linear Metal Casing 75W LED driver with 2 parallel connected channels and 24VDC constant voltage output. It is designed with 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.UL and ENEC certification ensures high safety and reliability performance of the driver to be used worldwide.

Key Features

  • DALI-2 certified 75w LED driver
  • UL and ENEC certification
  • 100-277VAC universal input
  • Mains-powered control gear
  • DALI bus current consumption < 2mA
  • 2 channels parallel connected channels output, 24VDC constant voltage
  • Class Ⅱ power supply, full isolated plastic case
  • Rubycon capacitors
  • Built-in active PFC function
  • High power factor and efficiency, PF > 0.9, Efficiency > 90%
  • Complying with IEC62386-101:2014, 102:2014, 207 ed.2, scalable system
  • Supports DALI-2 input devices: Occupancy, light sensors and push buttons
  • Enables to control single color LED lighting
  • Fade time, system failure level, power on level configurable
  • 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters
  • Smooth and deep dimming to 0.1% without flickering, no buzzing noise
  • Error report function
  • IP20 rating, suitable for indoor LED lighting applications
