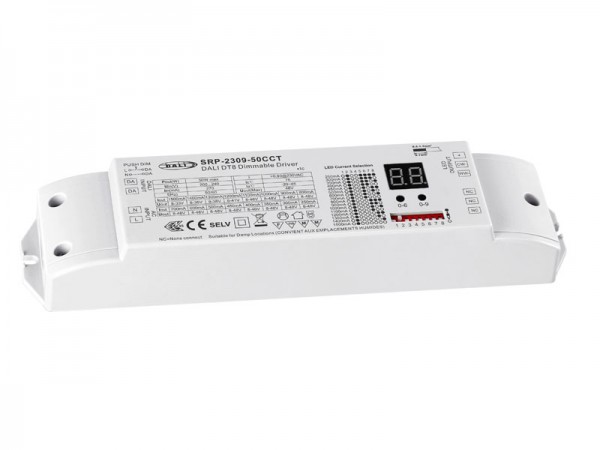

DALI-2 Certified 50W DT8 TW Dimmable LED Driver SRP-2309-50CCT

SRP-2309-50CCT is a DALI-2 certified 50w DT8 tunable white LED driver with adjustable current from 250mA to 1500mA by DIP switches, which enables it to be suitable for different LED lights. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, 209:2011, this DALI driver is compatible with DALI-2 certified application controllers and control devices.

Key Features

• DALI-2 certified 50w DT8 tunable white LED driver
• ENEC certified
• Mains-powered control gear
• DALI bus current consumption <2mA
• 2 channels parallel connected channels output, 250mA ~ 1500mA constant current Adjustable by DIP switches
• Class Ⅱ power supply, full isolated plastic case
• Rubycon capacitors
• Built-in active PFC function
• High power factor and efficiency, PF > 0.9, Efficiency > 87%
• Complying with IEC62386-101:2014, 102:2014, 207 ed.2, 209:2011 scalable system
• Supports DALI-2 input devices: Occupancy, light sensors and push buttons
• Enables to control single color LED lighting
• Fade time, system failure level, power on level configurable
• 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters
• Smooth and deep dimming to 0.1% without flickering, no buzzing noise
• Error report function
• IP20 rating, suitable for indoor LED lighting applications
