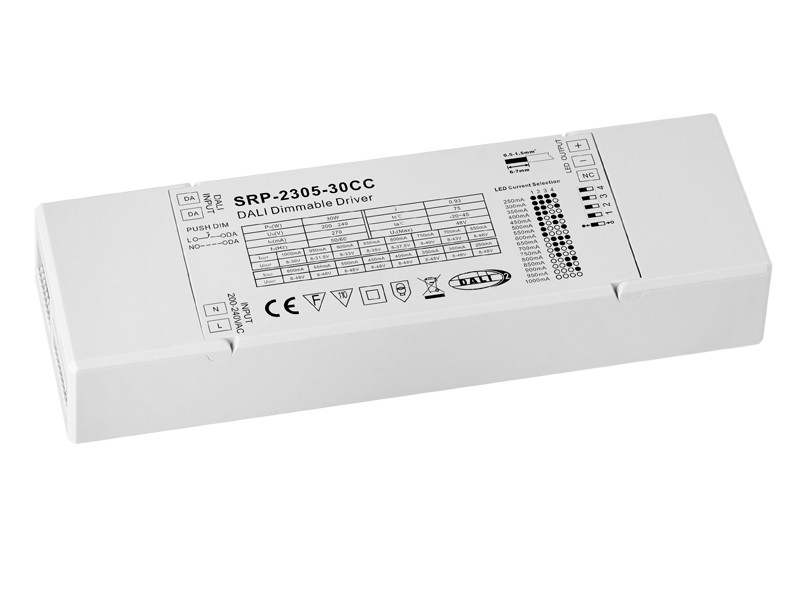

SRP-2305-30CC is a DALI-2 certified 30w LED driver with 1 channel constant current output and adjustable current from 250mA to 1000mA by DIP switches, which enables it to be suitable for different LED lights. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 83%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.
Key Features
- DALI-2 certified 30w LED driver
- ENEC certified
- Mains-powered control gear
- DALI bus current consumption <2mA
- 1 channel constant current output, 250mA ~ 1000mA constant current Adjustable by DIP switches
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 83%
- Complying with IEC62386-101:2014, 102:2014, 207 ed.2, scalable system
- Supports DALI-2 input devices: Occupancy, light sensors and push buttons
- Enables to control single color LED lighting
- Fade time, system failure level, power on level configurable
- 1 DALI address can be automatically assigned by DALI masters
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- Error report function
- IP20 rating, suitable for indoor LED lighting applications
Download Center
To know further details of this product, please download the following user manual.
SRP-2305-30CC User Manual
