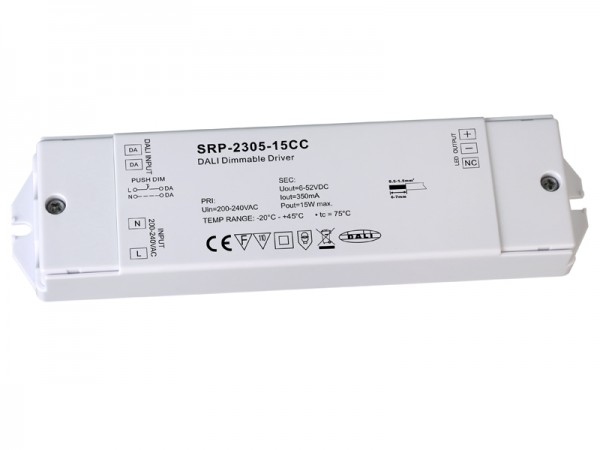

SRP-2305-15CC is a DALI-2 certified 15w LED driver with 1 channel 350mA constant current output, the operation current can be adjustable from 100mA-350mA by factory setting. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 80%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.
Key Features
- DALI-2 certified 15w LED driver
- ENEC certified
- Mains-powered control gear
- DALI bus current consumption <2mA
- 1 channel output, 100mA ~ 350mA constant current adjustable by factory setting, default is 350mA
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 80%
- Complying with IEC62386-101:2014, 102:2014, 207 ed.2, scalable system
- Supports DALI-2 input devices: Occupancy, light sensors and push buttons
- Enables to control single color LED lighting
- Fade time, system failure level, power on level configurable
- 1 DALI address can be automatically assigned by DALI masters
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- Error report function
- IP20 rating, suitable for indoor LED lighting applications
Download Center
To know further details of this product, please download the following user manual.
SRP-2305-15CC User Manual
