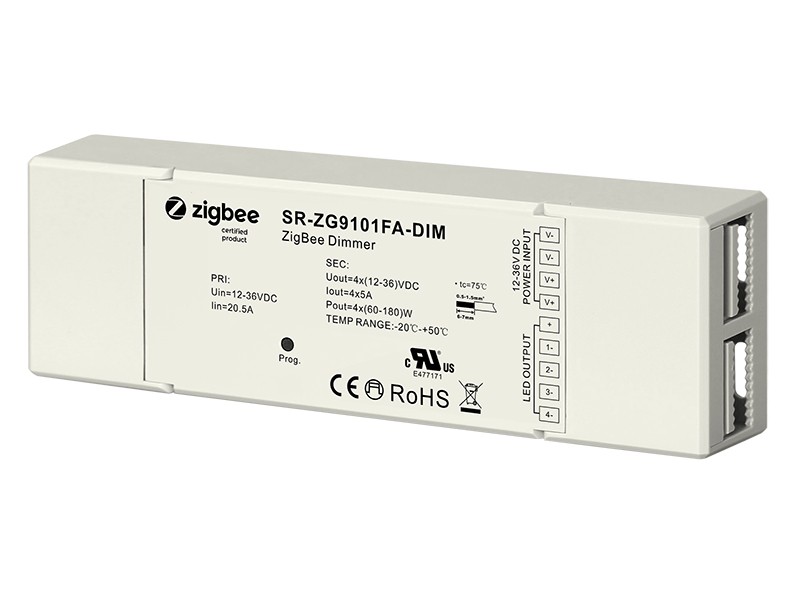

SR-ZG9101FA-DIM is a single color constant voltage Zigbee light switch dimmer for single color LED strip lights, it can search and pair to Zigbee network and be controlled from your controller or hub interface. Internet remote control option via smart phone, computer or tablet extends your control convenience. The Zigbee LED dimmer can be compatible with universal Zigbee gateway or coordinator. In addition, once compatible Zigbee remotes are added to the network, they can be controlled by the remotes.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
It is designed with DC 12-36V input and 4 channel constant voltage output, max. output current per channel can be up to 5A, which means a total output of 720W.
Key Features
- Constant Voltage Zigbee LED Light Switch Dimmer, 5A per channel, 4 channels output
- Zigbee 2.4G RF technology
- ZigBee Single Color Lighting Device
- Zigbee Mesh Network
- Compatible with Universal ZigBee Gateway/Coordinator
- Compatible with Single Color ZigBee Remotes
- Can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink
- Supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
SR-ZG9101FA-DIM | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 53*165*23 |
Wiring Diagram for Receiver
