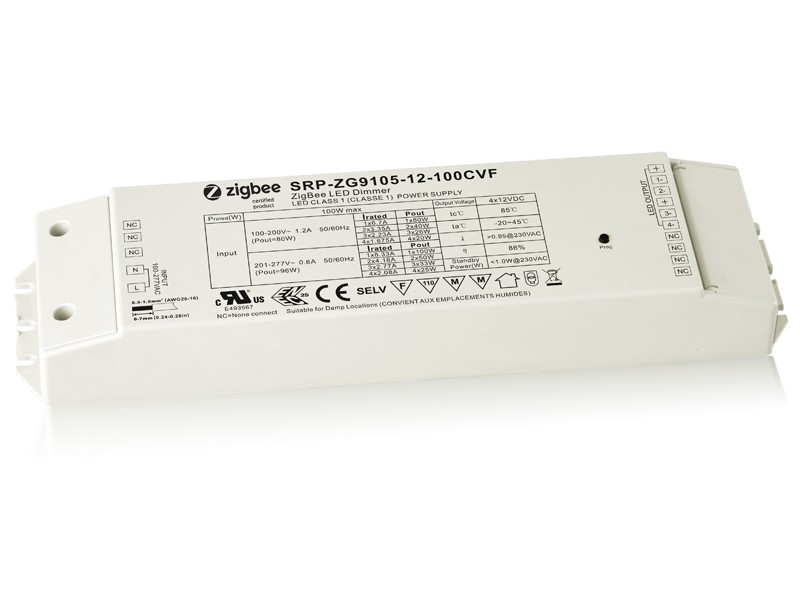

- Constant Voltage 100W ZigBee Dimmable PWM RGBW LED Driver SRP-ZG9105-12-100W-CVF
SRP-ZG9105-12-100W-CVF is an UL and ENEC approved 100W dimmable PWM RGBW LED driver with 4 channels 12VDC/24VDC constant voltage output and 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The PWM LED driver is designed with ZigBee 3.0 control interface and can pair to Zigbee network and be controlled from your controller or hub interface. The driver can be compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes. The driver can control RGB/RGBW LED lighting. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
Part No. | Input Voltage | Output Voltage | Maximum Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-ZG9105-12-100W-CVF | 100-277VAC | 12VDC | 100W | 8.3A max. | 64*244*32 |
SRP-ZG9105-24-100W-CVF | 100-277VAC | 24VDC | 100W | 4.1A max. | 64*244*32 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-ZG9105-12-100W-CVF User Manual
SRP-ZG9105-24-100W-CVF User Manual
