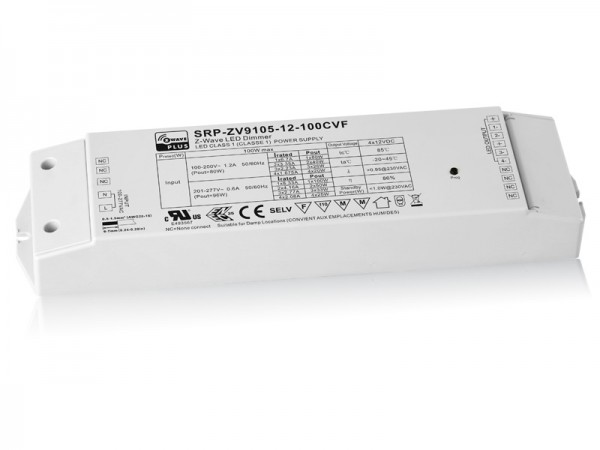

- Constant Voltage 100W Z-Wave Dimmable PWM RGBW LED Driver SRP-ZV9105-12-100W-CVF
SRP-ZV9105-12-100W-CVF is an UL and ENEC approved 100W dimmable PWM RGBW LED driver with 4 channels 12VDC/24VDC constant voltage output and 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The PWM LED driver is designed with Z-Wave Plus control interface which can be included to Z-Wave network and be controlled from your controller or hub interface. The driver can be compatible with universal Z-Wave gateway or primary controller. In addition, the Z-Wave device can bind with Z-Wave remote or wall controllers and controlled by the them. The driver can control RGBW LED lighting. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
Part No. | Input Voltage | Output Voltage | Maximum Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-ZV9105-12-100W-CVF | 100-277VAC | 12VDC | 100W | 8.3A max. | 64*244*32 |
SRP-ZV9105-24-100W-CVF | 100-277VAC | 24VDC | 100W | 4.1A max. | 64*244*32 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-ZV9105-12-100W-CVF User Manual
