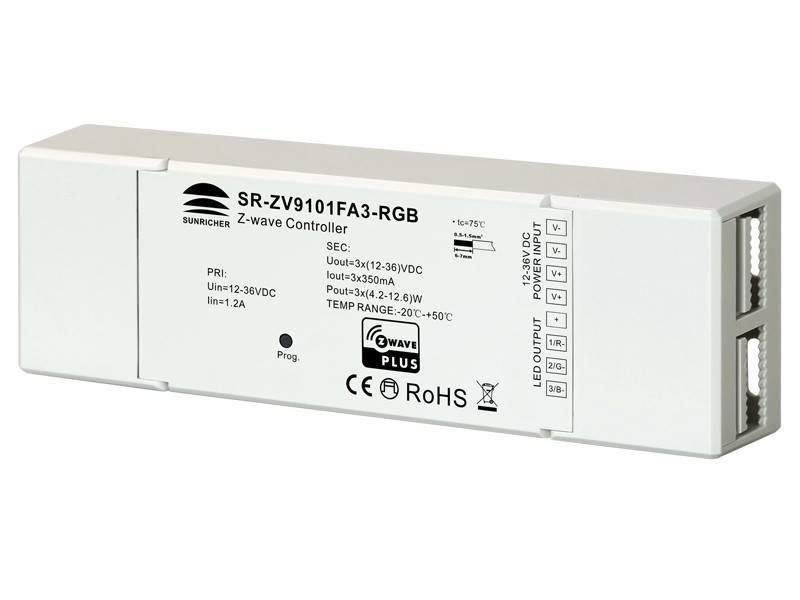

The SR-ZV9101FA3-RGB is a constant current RGB z-wave lighting device and z-wave slave that adopts z-wave RF Plus and z-wave mesh network technology with 3 channels, 350mA per channel output. As a z-wave slave, the device can be added to z-wave network or removed from z-wave network by z-wave primary (master) controllers or gateway. It is a universal z-wave slave which is compatible with universal z-wave primary (master) controllers/gateway.
Key Features
- Constant current RGB Z-wave lighting device and slave controller, 350mA per channel, 3 channels output
- Source-routed Mesh Network Architecture
- Each device works as a node
- All Nodes Are Transceivers
- Each Z-wave Network Allows Up to 232 Devices
- Actively route around and circumvent obstacles or radio dead spots
- Wireless Synchronization to Drastically Increase Control Distance
- Source-routed Mesh Network Architecture
- Devices can communicate to one another by using intermediate nodes
- Added to z-wave network by z-wave masters or gateway
- Removed from z-wave network by z-wave masters or gateway
- Compatible with universal z-wave masters/gateway
- RGB controller
- Scene storage and recall function
| Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
|---|
| SR-ZV9101FA3-RGB | 12-36VDC | 3CH, 0.35A/CH | 12.6-37.8W | Constant Current | 53*165*23 |
|---|
Wiring Diagram for Receiver
