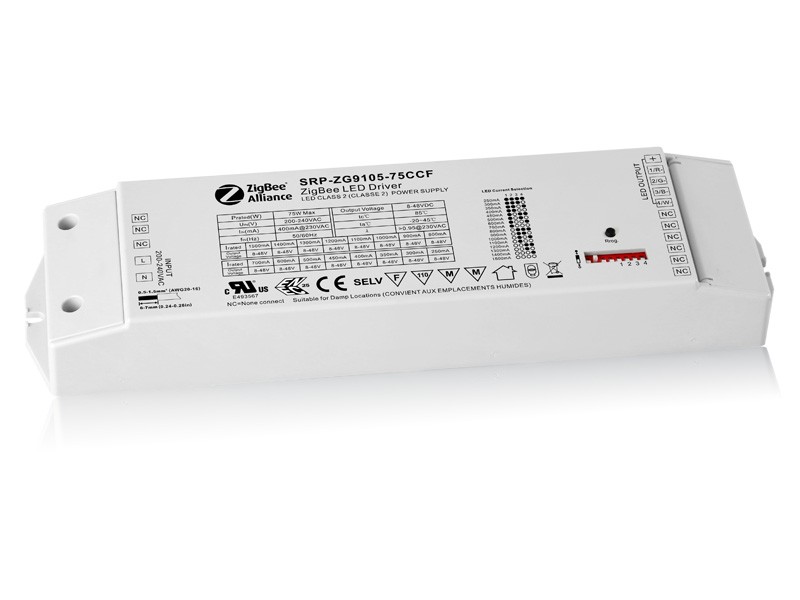

The SRP-ZG9105-75W-CCF is an ENEC approved 75W constant current ZigBee LED dimmable driver with 200-240VAC input and 4 channels PWM output. The output current is settable from 250mA to 1500mA by DIP switch on the driver. Designed with ZigBee 3.0 control interface, the driver can pair to ZigBee network and be controlled from your controller or hub interface. The driver is compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes.The LED driver is able to control RGB/RGBW LED lighting. With over voltage, over temperature, short circuit protection and IP20 rating, the LED driver is reliable and suitable for indoor use. ENEC certification ensures high safety performance of the driver to be used in Europe.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
- 75W ZigBee LED dimmable driver
- ENEC certification
- ZigBee 3.0 control interface
- Can pair to ZigBee network and be controlled from your controller or hub interface
- Compatible with universal ZigBee gateway or coordinator
- Supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes
- Can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink
- Supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes
- 200-240VAC input
- Constant current output, 4 channels PWM output
- Output current adjustable from 250mA to 1500mA by DIP switch on the driver
- Current accuracy < ±5%
- Built-in active PFC function
- Power factor > 0.90, efficiency > 85%
- Smooth and deep dimming to 0.1%, flicker free

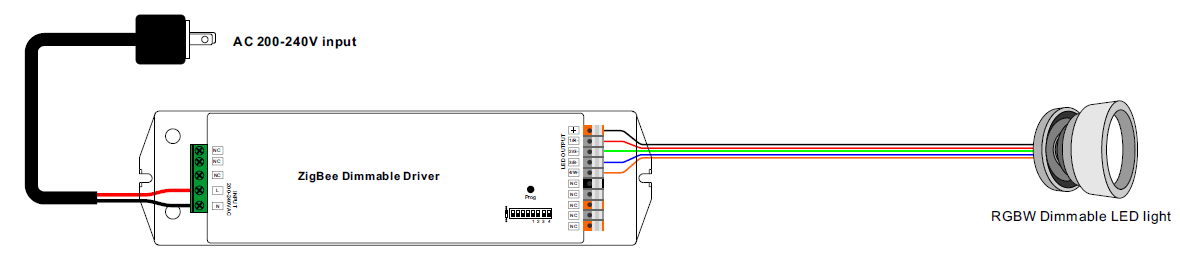

- To control RGB/RGBW LED lighting
- Over current protection, over heat protection, short circuit protection
