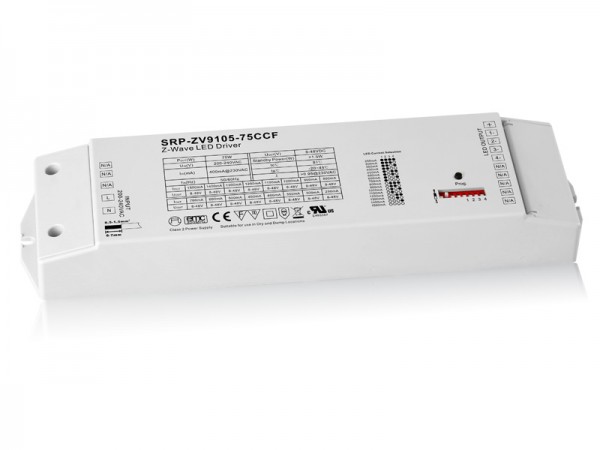

The SRP-ZV9105-75W-CCF is an ENEC approved 75W constant current ZigBee LED dimmable driver with 200-240VAC input and 4 channels PWM output. The output current is settable from 250mA to 1500mA by DIP switch on the driver. Designed with Z-Wave Plus control interface, the driver can be included to Z-Wave network and be controlled from your controller or hub interface. The driver can be compatible with universal Z-Wave gateway or primary controller. In addition, the Z-Wave device can bind with Z-Wave remote or wall controllers and controlled by the them. The LED driver is able to control RGBW LED lighting. With over voltage, over temperature, short circuit protection and IP20 rating, the LED driver is reliable and suitable for indoor use. ENEC certification ensures high safety performance of the driver to be used in Europe.
Key Features
- 75W ZigBee LED dimmable driver
- ENEC certification
- Z-Wave Plus control interface which can be included to Z-Wave network and be controlled from your controller or hub interface
- Compatible with universal Z-Wave gateway or primary controller
- Can bind with Z-Wave remote or wall controllers and controlled by the them
- 200-240VAC input
- Constant current output, 4 channels PWM output
- Output current adjustable from 250mA to 1500mA by DIP switch on the driver
- Current accuracy < ±5%
- Built-in active PFC function
- Power factor > 0.90, efficiency > 85%
- Smooth and deep dimming to 0.1%, flicker free
- To control RGBW LED lighting
- Over current protection, over heat protection, short circuit protection
