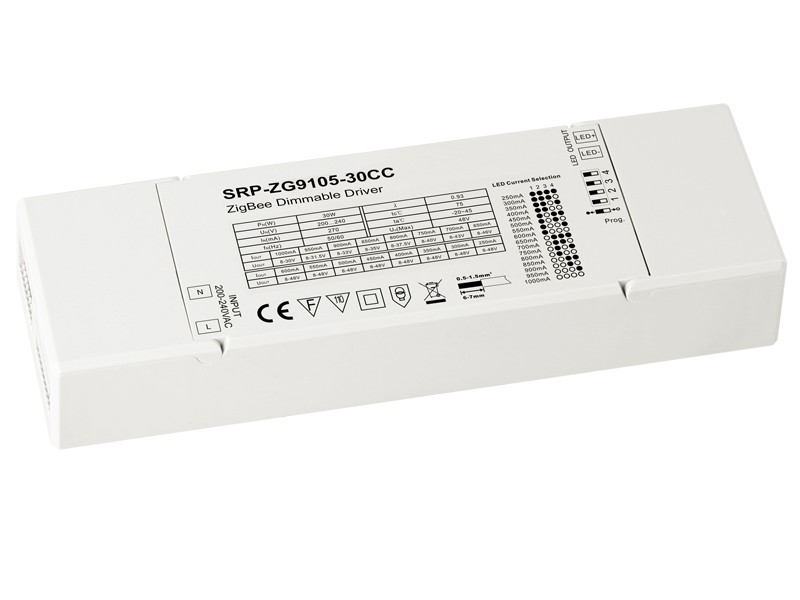

- Constant Current 30w ZigBee LED Dimmable Driver SRP-ZG9105-30W-CC
SRP-ZG9105-30W-CC is a 30w Dimmable LED Driver with 1 channel constant current output and adjustable current from 250ma to 1000ma by DIP switches on the driver, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 83%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The driver is designed with ZigBee 3.0 control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The driver can be compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
Part No. | Input Voltage | Output Current | Maximum Output Power | Output Voltage Range | Dimension (mm) |
---|---|---|---|---|---|
SRP-ZG9105-30W-CC | 200-240VAC | 250ma-1000ma | 30W | 8-48VDC | 53.4*170*28 |

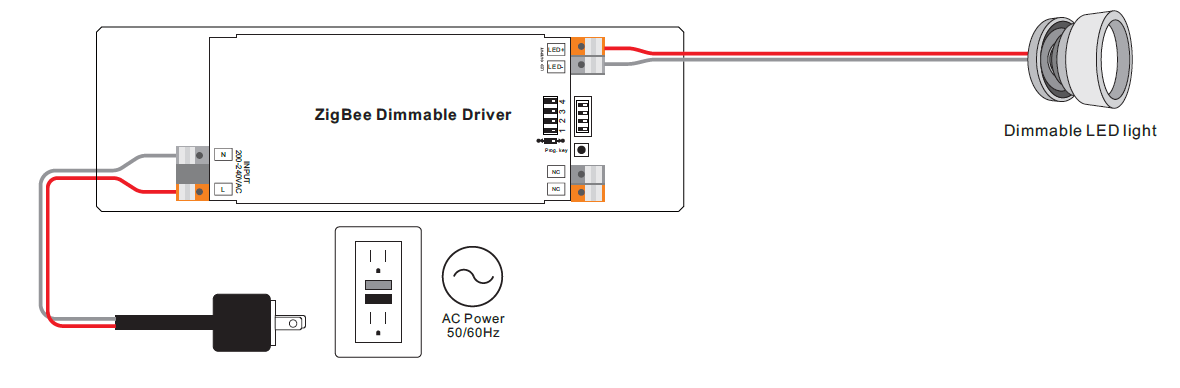

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-ZG9105-30W-CC User Manual
