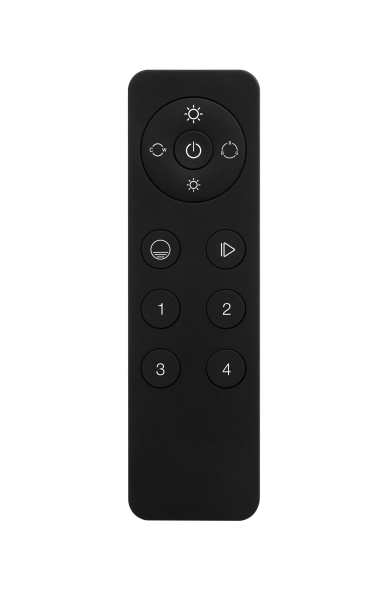

SR-ZG2803-G4-5C is a cct ZigBee key remote controller that enables switch and dimming control and works with a ZigBee gateway/coordinator, it shall join ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control single color ZigBee lighting devices, and each group can bind maximum 30 devices. It is a low cost ZigBee remote powered by a 3VDC button battery due to robust, reliable ZigBee PRO networking. With magnet bracket, the remote is easy to fasten.
The ZigBee remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard.
The ZigBee key remote controller allows not only independent control of individual group by group keys but also synchronous control of all groups by All On and All Off keys. 2 scenes can be saved and recalled for each group.
Key Features
- ZigBee RGB+CCT+DIM remote based on ZigBee 3.0
- Enables to control both RGB and CCT lighting devices
- Battery powered remote with low power consumption
- Enables to pair ZigBee lighting devices via touchlink commissioning without coordinator
- Supports find and bind mode to pair with ZigBee lighting devices
- Supports 4 groups for binding max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway products
- Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices
