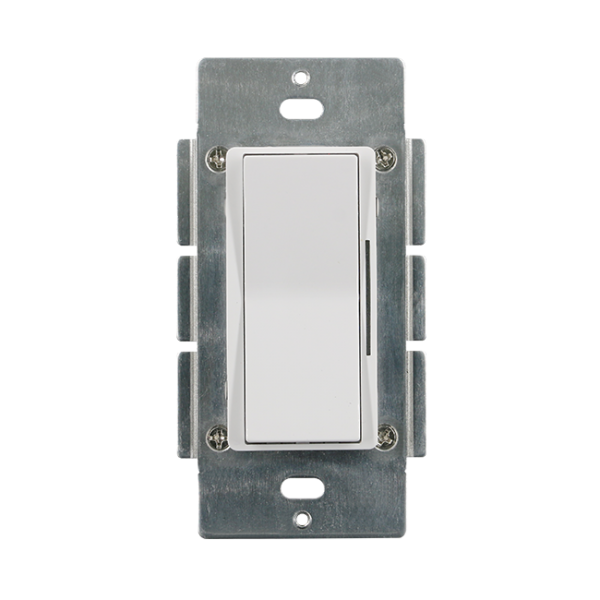

The Casambi Phase Cut Smart Dimmer is a versatile keypad dimmer that supports both no-neutral and neutral wiring configurations. Capable of controlling resistive, capacitive, or inductive loads, it offers a 1-channel output of up to 300W with trailing edge dimming. The dimmer can be wirelessly controlled via the Casambi app, remotes, wall switches, and kinetic switches. It features advanced microprocessor control, smart light source detection, and active power and energy metering. The dimmer is compatible with existing US standard frames and junction boxes, offering easy installation. With a typical mesh range of over 50 meters in line-of-sight indoor environments, it operates at 2.4GHz RF and has an IP20 waterproof rating. A soft start function and optional bypass extension unit are also included.
Features
• Casambi keypad smart dimmer
• Can work under no neutral wiring and with neutral wiring, self-adaptive
• Supports resistive loads, capacitive loads or inductive loads
• 1 channel output, up to 300W
• Trailing edge dimming
• Button function can be configured by Casambi app
• Typical mesh range is over 50 meters line of sight for indoor environment
• The phase dimmer can be controlled by Casambi app, remotes, wall switches, kinetic switches, the buttons can control
Casambi network wirelessly
• Standard size, can be compatible with existing US standard frames, and installed into existing junction box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
Main Features:
• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function
• The Bypass is an extension unit
