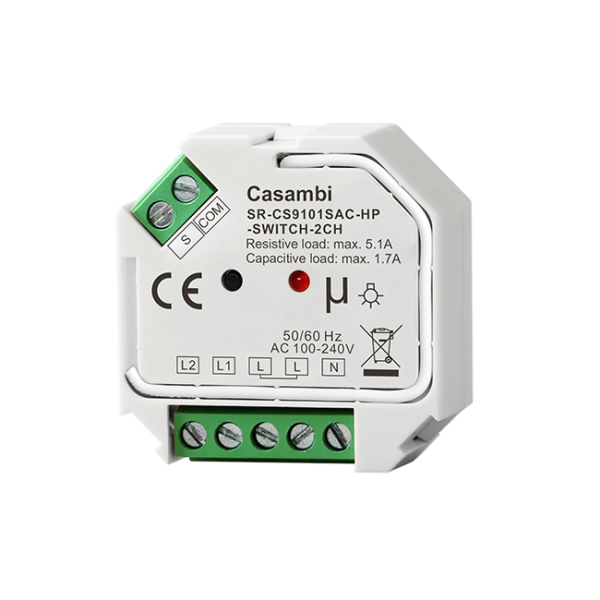

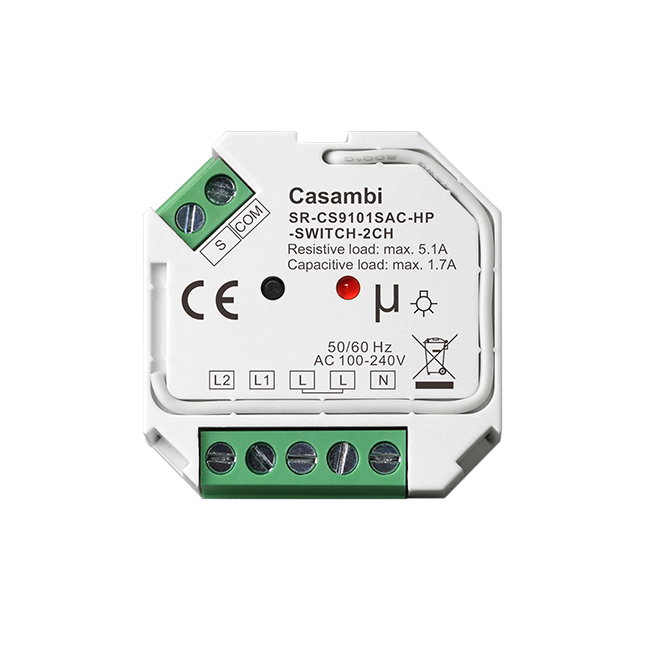

The SR-CS9101SAC-HP-SWITCH-2CH is an innovative AC 2 channels in wall switch with Casambi control interface. The AC switch is designed with 100-240VAC wide input and output, 2 channels output, max. load 5.1A/CH, and maximum 1170W/CH output for incandescent and HV halogen lamps, 390W/CH for LED lamps. The Casambi AC switch supports resistive loads and capacitive loads (When connecting to the curtain motor, the maximum load current is 2A), and enables to control ON/OFF of connected load. The AC switch can be compatible with universal Casambi wall switches and remotes.
It also supports 1 channel push button input, can be configured through Casambi App to control elements, luminaires, groups, scenes
Key Features
• 100-240VAC wide input and output voltage
• Supports resistive loads and capacitive loads
• 2-channel output, max. load 5.1A/CH
• Input and output with screw terminals, safe and reliable
• Enables to control ON/OFF of connected load
• Supports relay mode and curtain mode
• Casambi bluetooth, 2.4GHz radio frequency
• Radio range: 164 feet (50m) in open field. Actual range is dependent on field installation.
• Compatible with universal Casambi wall switches and remotes
• 1 channel push button input, can be configured through Casambi App to control elements, luminaires, groups, scenes
• Mini size, easy to be installed into a standard size wall box
• Waterproof grade: IP20
