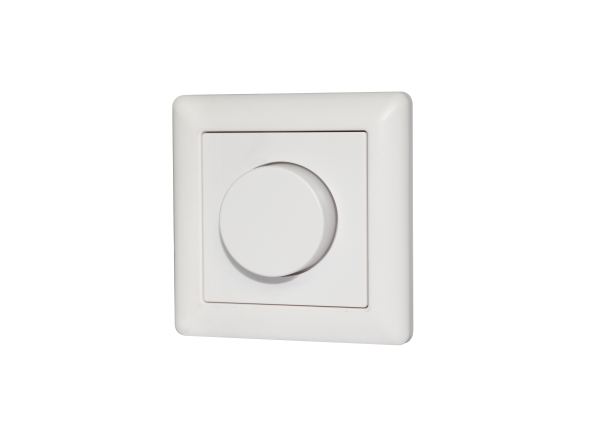

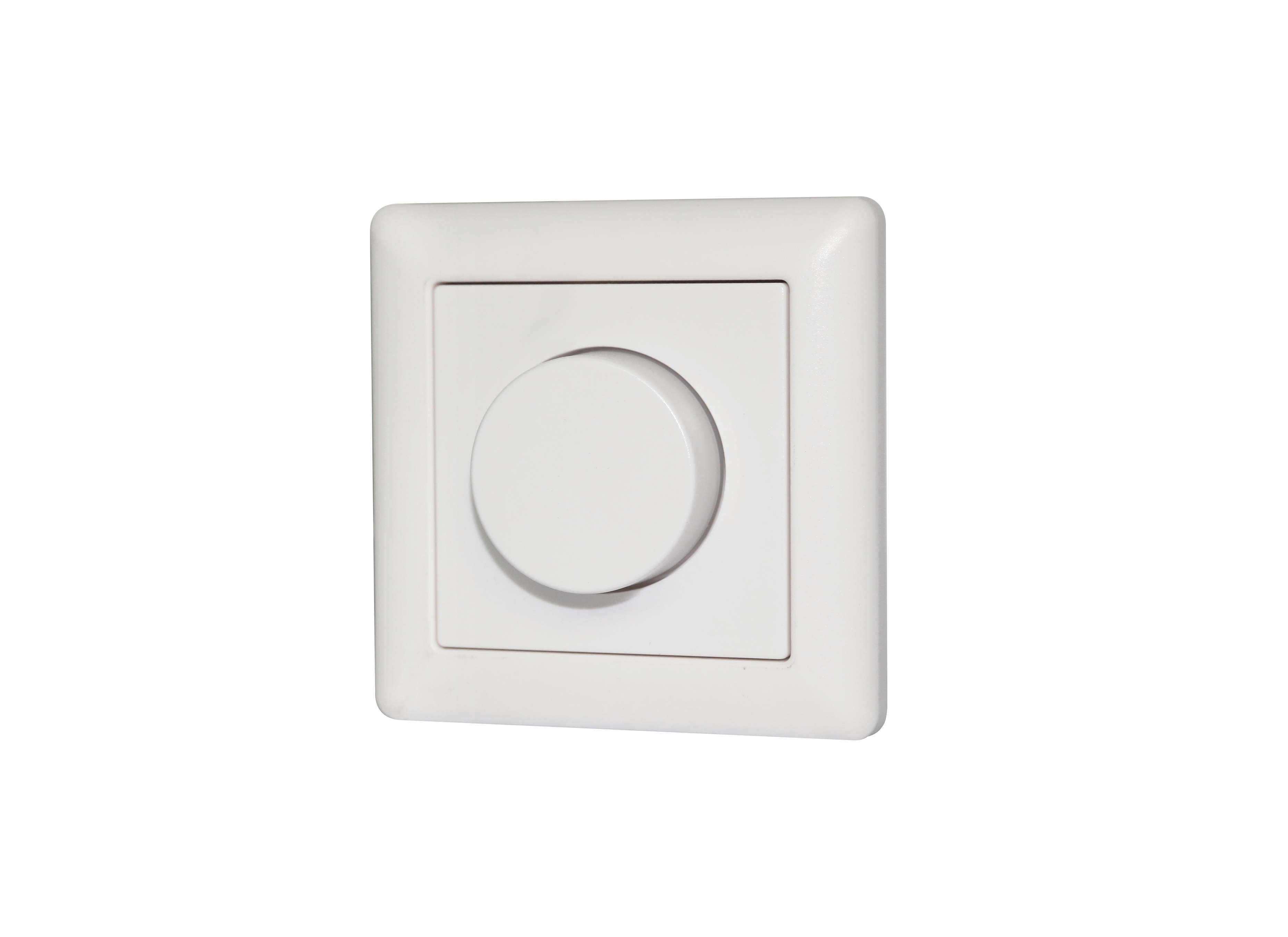

SR-2205N-A 1-10V dimmer enables to set different dim off voltages by potentiometer to match different suppliers’ 1-10V drivers that may be dimmed off at different signal voltage. The voltage can be set from 0.5V-0.9V, please refer to the manual of your 1-10V driver to get the correct dim off signal voltage. Factory default dim off signal voltage is 0.9V.
Key Features
- Rotation sensitive
- Built-in power switch, switch up to 10A
- Standard design, The key part of this controller is a universal, extremely rotary standard switch element that can be integrated in numerous frames by different manufactures
- 1 channel 1-10V Signal output
- Enable to set different dim off signal voltage (0.5V-0.9V) by potentiometer to match different suppliers’ 1-10V driver
- Control single color
- Waterproof grade: IP20
- 0-10V version for chosen
Download Center
To know further details of this product, please download the following user manual.
SR-2205N-A User Manual
