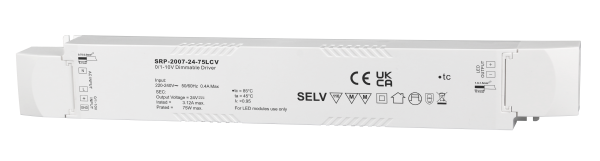

The SRP-2007-24-75CVF is an UL & ENEC approved 75w 0/1-10V LED dimmable driver with 100-277VAC input and 4 channels constant voltage output. The output voltage can be available in 12VDC or 24VDC by factory setting. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The LED driver can be compatible with kinds of dimming signal including 0-10V, 1-10V, potentiometer and push switch to dim and switch single color LED lighting. 1 channel 0/1-10V signal input is available for controlling of 4 channels PWM output synchronously. The 0/1-10V CV LED driver is designed with over current protection, over heat protection and short circuit protection.
Key Features
- Dimmable Constant Voltage LED Driver, Max. output power 75W
- UL and ENEC certification
- Universal input 100-277VAC
- 4 channels 12VDC or 24VDC constant voltage output
- Class Ⅱ power supply, full isolated plastic case
- Standby power consumption < 0.5W
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 85%
- 1 channel 0/1-10V signal input is available for controlling of 4 channels PWM output synchronously
- 0-10v version is optional
- To control constant voltage single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
