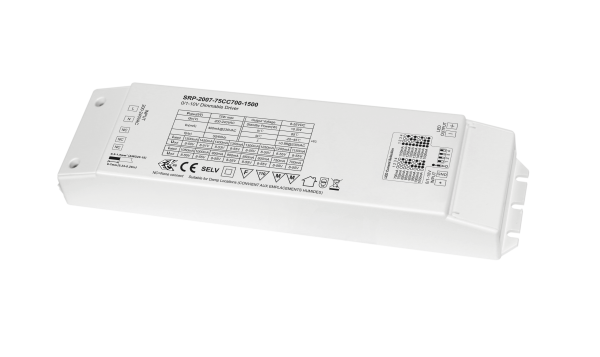

SRP-2007-75CC700-1500 is an ENEC approved dimmable 75w led driver with 1-10v interface and 1 channel constant current output and multi current is selectable from 700mA to 1500mA by DIP switches, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. It is designed with 1 channel 1-10V signal input for controlling of 4 channels of PWM output synchronously. The 75w LED driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional. ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
- 0/1-10V Dimmable LED driver
- 1 channel constant current output, total output power up to 75W
- Output current level selectable from 700mA to 1500mA by DIP switches
- Class Ⅱ power supply, full isolated plastic case
- High power factor and efficiency
- Low standby power < 0.5W
- Compliant with Safety Extra Low Voltage standard
- Short circuit, over load, over temperature protection
- IP20 rating, suitable for indoor LED lighting applications
- 5 years warranty
