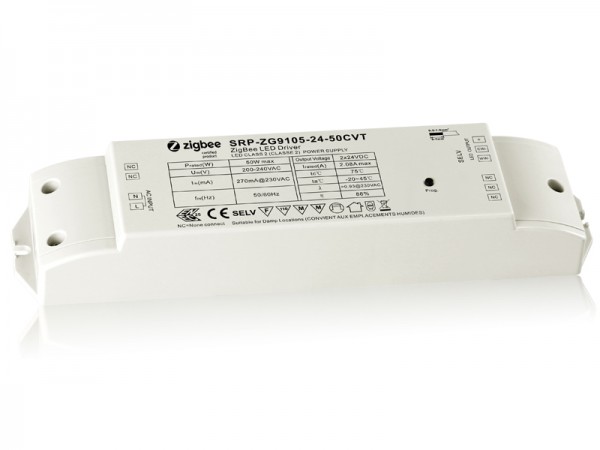

- 50W Dimmable Constant Voltage ZigBee Color Temperature LED Driver SRP-ZG9105-12-50CVT/SRP-ZG9105-24-50CVT
SRP-ZG9105-12-50CVT/SRP-ZG9105-24-50CVT is a 50W Dimmable Constant Voltage LED Driver with 2 channels 12VDC or 24VDC output, which enables it to be suitable for CCT LED lights with different voltage. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The constant voltage driver is designed with ZigBee 3.0 control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The driver is compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
Part No. | Input Voltage | Output Voltage | Maximum Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-ZG9105-12-50CVT | 200-240VAC | 12VDC | 50W | 4.16A max. | 50*210*32 |
SRP-ZG9105-24-50CVT | 200-240VAC | 24VDC | 50W | 2.08A max. | 50*210*32 |

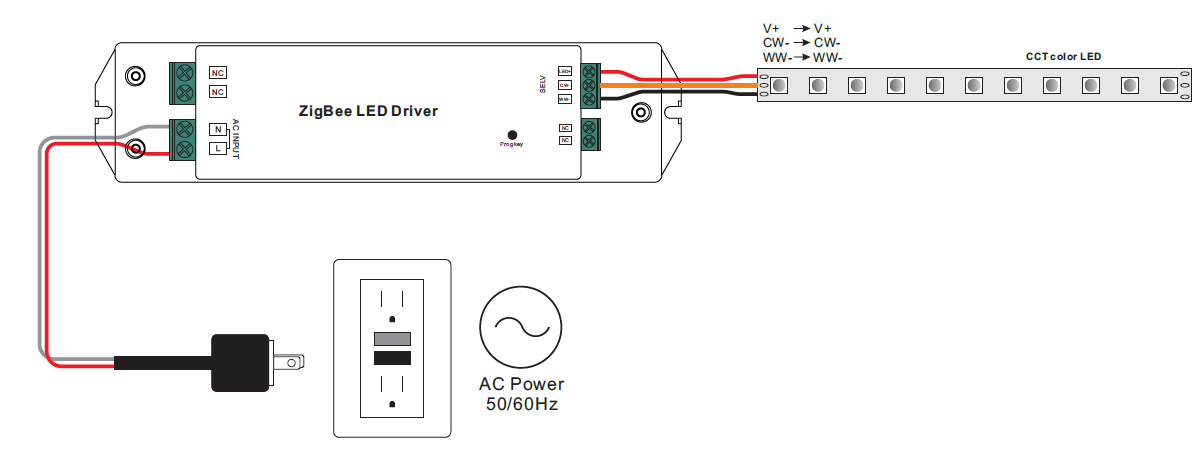

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-ZG9105-12-50CVT/SRP-ZG9105-24-50CVT User Manual
