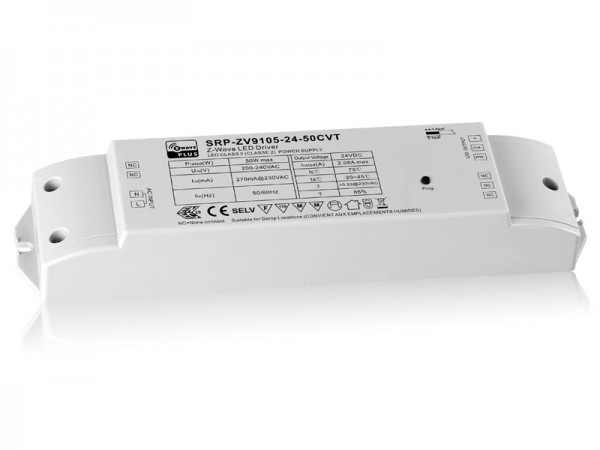

- 50W Dimmable Constant Voltage Z-Wave Color Temperature LED Driver SRP-ZV9105-50W-CVT
SRP-ZV9105-50W-CVT is a 50W Dimmable Constant Voltage LED Driver with 2 channels 12VDC or 24VDC output, which enables it to be suitable for CCT LED lights with different voltage. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The constant voltage driver is designed with Z-Wave Plus control interface which can be included to Z-Wave network and be controlled from your controller or hub interface. The driver can be compatible with universal Z-Wave gateway or primary controller. In addition, the Z-Wave device can bind with Z-Wave remote or wall controllers and controlled by the them.
Key Features
Part No. | Input Voltage | Output Voltage | Maximum Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-ZV9105-50W-12V-CVT | 200-240VAC | 12VDC | 50W | 4.16A max. | 50*210*32 |
SRP-ZV9105-50W-24V-CVT | 200-240VAC | 24VDC | 50W | 2.08A max. | 50*210*32 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-ZV9105-50W-CVT User Manual
