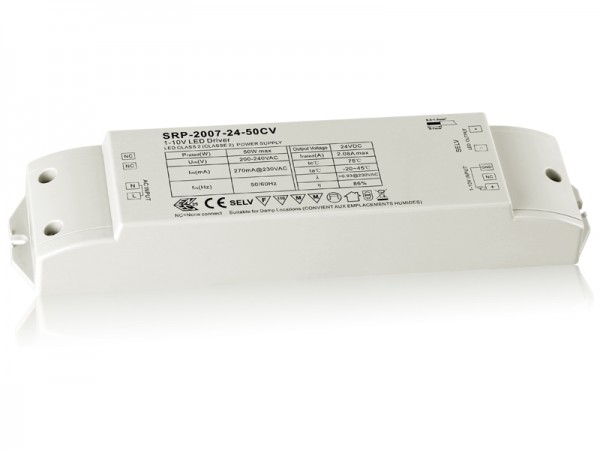

The SRP-2007-24-50CV is a 50w 0/1-10V LED dimmable driver with 200-240VAC input and constant voltage output. The output voltage can be available in 12VDC or 24VDC by factory setting. Power factor can be over 0.9, efficiency can be over 86%. The LED driver can be compatible with kinds of dimming signal including 0-10V, 1-10V, potentiometer and push switch to dim and switch single color LED lighting. 1 channel 0/1-10V signal input is available for 1 channel PWM output. The 0/1-10V CV LED driver is designed with over current protection, over heat protection and short circuit protection.
Key Features
- Dimmable Constant Voltage LED Driver, Max. output power 50W
- 1 channels 12VDC or 24VDC constant voltage output
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 85%
- Controlled via 1-10v control unit and can be compatible with universal 1-10v signal
- 0-10v version is optional
- To control constant voltage single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
