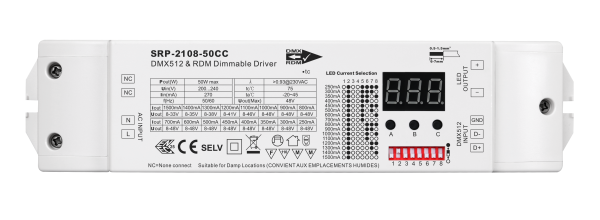

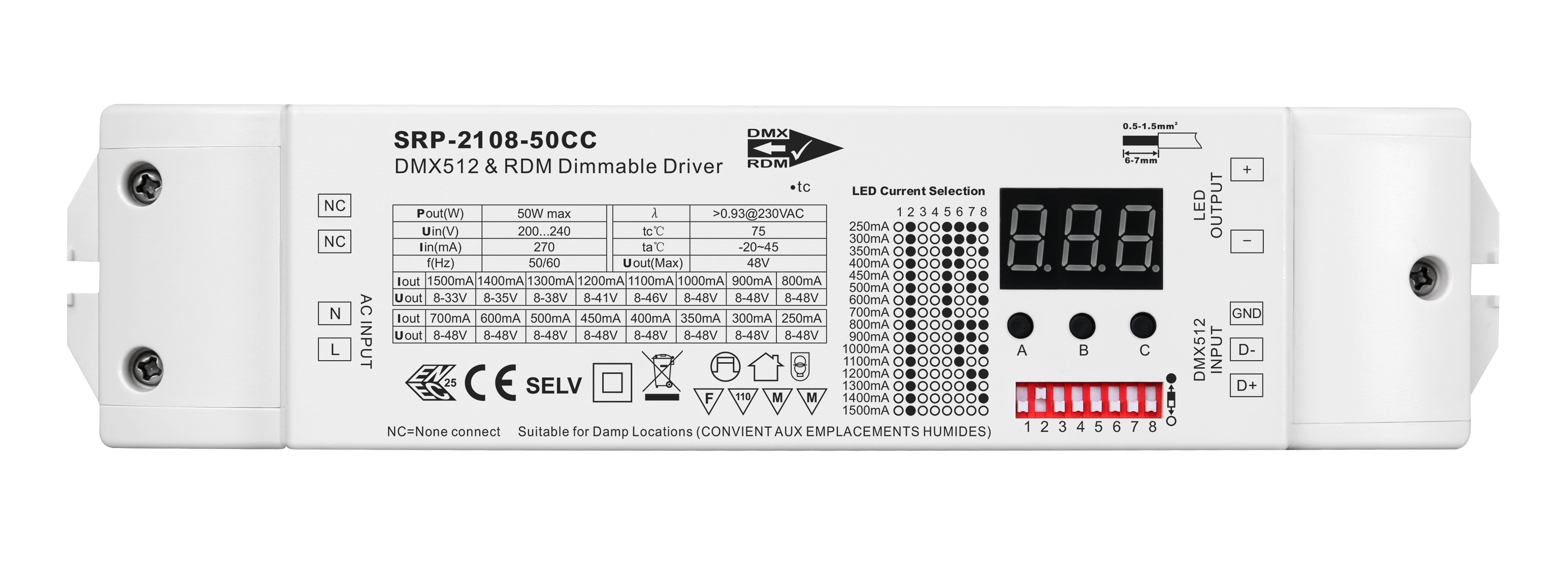

SRP-2108-50CC is a 50w dimmable DMX LED driver with 1 channel constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.93 and efficiency is higher than 86%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DMX address can be manually assigned via buttons and showed on digital display. Complying with DMX512(2008) and DMX512-A, this LED driver is compatible with universal DMX master controllers.
Key Features
- Dimmable LED driver, Max. output power 50W
- Standard DMX512 compliant control interface
- RDM function enabled to realize intercommunication between DMX master and decoder
- For example, DMX decoder’s address can be assigned by DMX master console
- PWM output ,250-1500mA constant current output
- Dips to set the operation current
- Class II power supply, full isolated plastic case
- High power factor and efficiency
- To Dim and ON/OFF LED luminaries
- With digital display to show data directly, easily to set and show DMX address.
- Output PWM frequency from 500HZ ~ 35K HZ settable
- Output dimming curve gamma value from 0.1 ~ 9.9 settable.
- IP20 rating, suitable for indoor LED lighting applications
- 5 years warranty
Download Center
To know further details of this product, please download the following user manual.
SRP-2108-50CC User Manual
