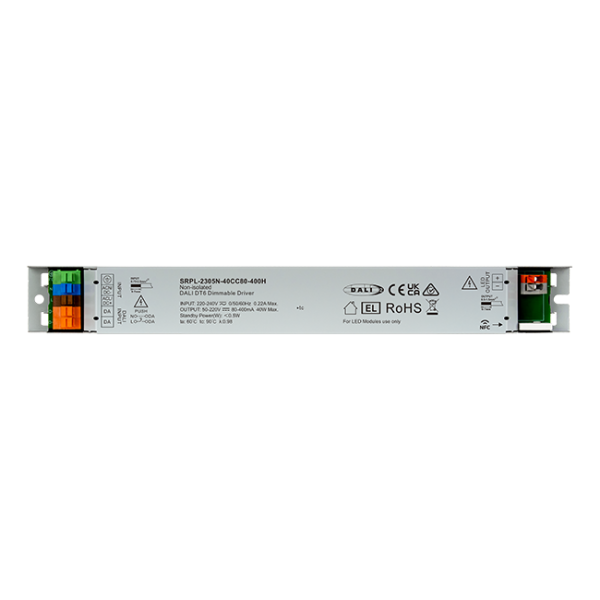

40W DALI DT6 Non-SELV NFC LED Driver (Constant Current) SRPL-2305N-40CC80-400H

SRPL-2305N-40CC80-400H is a DALI-2 DT6 certified long metal casing 40w Non-SELV NFC dimmable LED driver. It is designed with 1 channel constant current output with adjustable current from 80mA to 400mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.97 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
• Built-in DALI-2 interface, DALI DT6 device
• Dimmable LED driver with linear metal housing. Max. output power 40W
• 80-400mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• For luminaires of protection class I and protection class II
• High power factor and efficiency. Non-SELV rated driver
• To switch and dim LED lighting luminaries, Tunable white control
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT6 commands
• DALI-251/252/253 Enabled，DALI data inside
• Integrated Max.56mA DALI BUS supplu,enabled to powered DALI-2 sensors.
• 5 years warranty
• IP20 rating, suitable for indoor LED lighting applications
