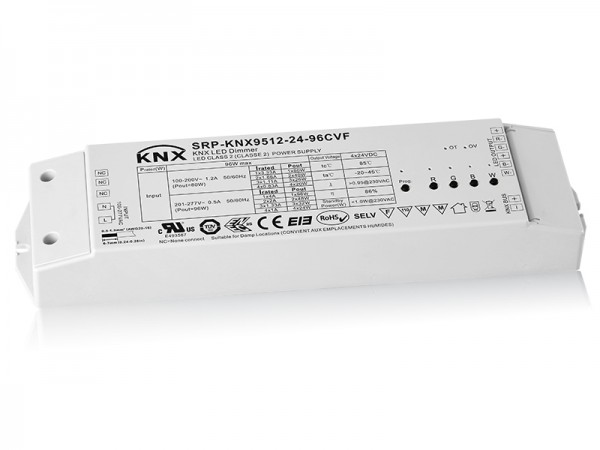

SRP-KNX9512-24-96W-CVF is an UL, ENEC and TUV approved KNX LED dimming actuator with integrated power supply with 4 channels 24VDC constant voltage output and 100-277VAC universal input, no extra power supply required. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. It is designed to control RGBW LED lighting. The dimmable LED driver is designed with built-in KNX interface and KNX/EIB bus connection terminal, which enables it to be compatible with universal KNX system. It supports physical address and group address. With switch on/off, relative dimming control, absolute dimming control, color sequence control, and status report functions, the KNX driver can be a great solution for building lighting automation while configuring with ETS4 software. UL, ENEC and TUV certification ensures high safety performance of the driver to be used worldwide
Key Features
- KNX LED Dimming Actuator with Integrated Power Supply, Max. output power 96W
- UL, ENEC and TUV certification
- 100-277VAC universal input
- 4 channels 24VDC constant voltage output
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in two stage active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 90%
- Built-in KNX interface, KNX/EIB Bus Connection Terminal
- Support Physical Address and Group Address
- Relative Dimming Control, Absolute Dimming Control, Color Sequence Control, On/Off Switching
- To control constant voltage RGBW LED lighting
- Commission and Project Design with ETS4
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- Status Report Function
- IP20 rating, suitable for indoor LED lighting applications
