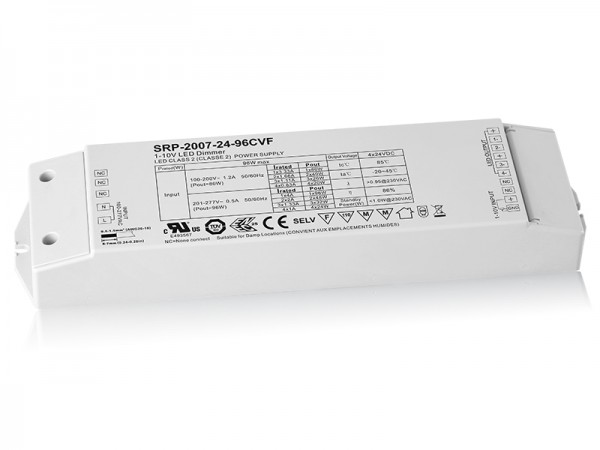

SRP-2007-24-96W-CVF is an UL, ENEC and TUV approved dimmable 96w LED driver with 1-10v interface and 4 channels 24VDC constant voltage output and 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It is designed with 1 channel 1-10v signal input for controlling of 4 channels of PWM output synchronously. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The dimmable driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional. UL, ENEC and TUV certification ensures high safety performance of the driver to be used worldwide.
Key Features
- Dimmable 24V 96W LED Driver, Max. output power 96W
- UL, ENEC and TUV certification
- 100-277VAC universal input
- 4 channels 24VDC constant voltage output
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in two stage active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 90%

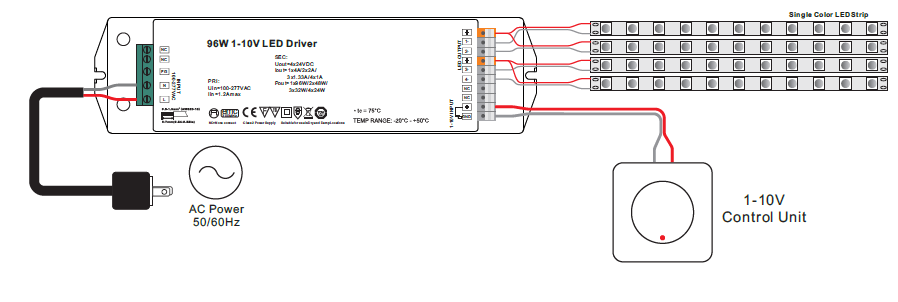

- 1 channel 1-10v signal input for controlling of 4 channels of PWM output synchronously
- Controlled via 1-10v control unit and can be compatible with universal 1-10v signal
- 0-10v version is optional
- To control constant voltage single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
