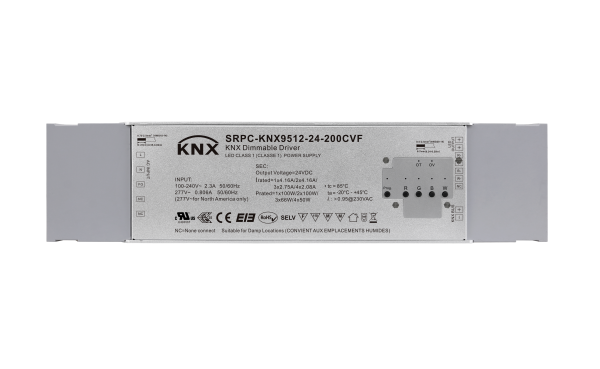

SRP-KNX9512-24-200CVF is an UL and ENEC approved KNX LED dimming actuator with integrated power supply with 4 channels 24VDC constant voltage output and 100-240VAC universal input, no extra power supply required. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. It is designed to control RGBW LED lighting. The dimmable LED driver is designed with built-in KNX interface and KNX/EIB bus connection terminal, which enables it to be compatible with universal KNX system. It supports physical address and group address. With switch on/off, relative dimming control, absolute dimming control, color sequence control, and status report functions, the KNX driver can be a great solution for building lighting automation while configuring with ETS4 software. UL and ENEC certification ensures high safety performance of the driver to be used worldwide
Key Features
- Dimmable LED driver with rectangle metal case, dimming range 0.1%-100%
- 100-240VAC wide input voltage
- Max. output power 200W total
- 4 channels DC 24V constant voltage output
- Class 1 power supply, full isolated plastic case
- High power factor and efficiency
- Built-in KNX interface, KNX/EIB Bus Connection Terminal
- Support Physical Address and Group Address
- To control single color, dual color, RGB/RGBW LED lighting
- Relative Dimming Control, Absolute Dimming Control, Scene Control, On/Off Switching
- Commission and Project Design with ETS4
- Waterproof grade: IP20
- Suitable for indoor LED lighting applications
