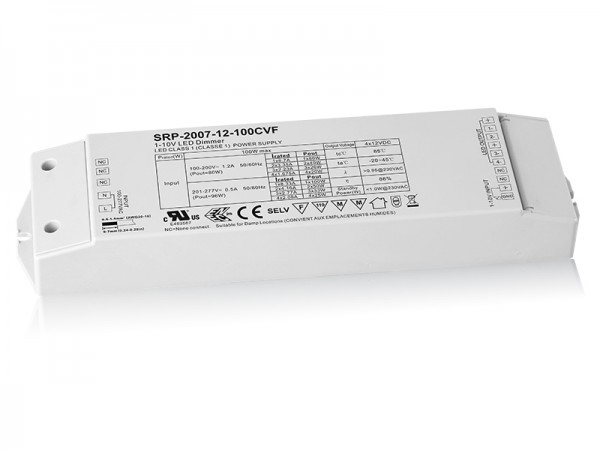

- 4 Channels Constant Voltage 100W Dimmable 100W LED Driver with 1-10V Interface SRP-2007-12-100W-CVF
SRP-2007-12-100W-CVF is an UL and ENEC approved dimmable 100w LED driver with 1-10v interface and 4 channels 12VDC constant voltage output and 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It is designed with 1 channel 1-10v signal input for controlling of 4 channels of PWM output synchronously. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The dimmable driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
Part No. | Input Voltage | Output Voltage | Maximum Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-2007-12-100W-CVF | 100-277VAC | 12VDC | 100W | 8.3A max. | 64*244*32 |

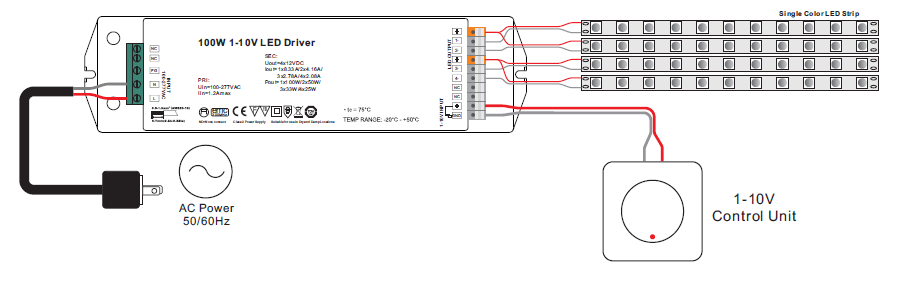

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2007-12-100W-CVF User Manual
