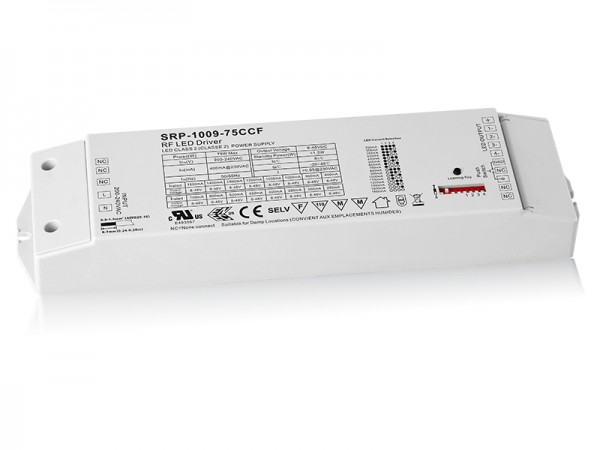

The SRP-1009-75CCF is an ENEC approved 75W constant current RF LED dimmable driver with 200-240VAC input and 4 channels PWM output. The output current is settable from 250mA to 1500mA by DIP switch on the driver. Compatible with a variety of perfect RF series remote controllers, the RF LED driver is able to control single color, tunable white, RGB/RGBW LED lighting. Push dim function is available while the RF dimmable driver connected with a push switch. With over voltage, over temperature, short circuit protection and IP20 rating, the LED driver is reliable and suitable for indoor use. ENEC certification ensures high safety performance of the driver to be used in Europe.
Key Features
- 75W RF LED dimmable driver
- ENEC certification
- RF receiver, 869.5MHZ/916.5MHz/434MHZ frequency
- 200-240VAC input
- Constant current output, 4 channels PWM output
- Output current adjustable from 250mA to 1500mA by DIP switch on the driver
- Current accuracy < ±5%
- Built-in active PFC function
- Power factor > 0.90, efficiency > 85%
- Smooth and deep dimming to 0.1%, flicker free
- Compatible with a variety of RF remote controls
- Push dim function available when connected with a simple push switch
- To control single color, tunable white, RGB/RGBW LED lighting
- Over current protection, over heat protection, short circuit protection
