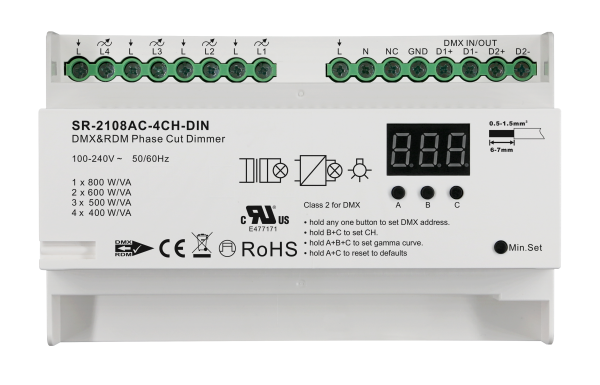

The SR-2108AC-4CH-DIN is a Triac DMX512 dimmer designed with 100-240VAC input and 100-240VAC output and safe and reliable full isolation design to dim and switch single color LED lamps, traditional incandescent and halogen lights. The DMX512 dimmer is designed with standard DMX512 compliant control interface with digital numeric digital display to set and show DMX address freely. The AC dimmer is both triac dimmable and mosfet dimmable and comes with 2 channel and maximum 1.2A per channel output. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The DMX512 triac dimmer can be compatible with a variety of DMX512 masters.
Key Features
- Safe and reliable full isolation design
- DMX phase dimmer, trailing edge dimming
- Supports resistive loads and capacitive loads
- Standard DMX512 compliant control interface
- RDM function enabled to realize intercommunication between DMX master and decoder.
- For example, DMX decoder’s address can be assigned by DMX master console
- With digital display to show data directly, easily to set and show DMX address
- DMX channel quantity from 1CH~4CH settable
- Output dimming curve gamma value from 0.1 ~ 9.9 settable
- 4 channels AC100-240V output
- To dim single color dimmable LED lamps, dimmable LED driver, traditional incandescent and halogen lights
- Din rail installation, easy and fast
- Waterproof grade: IP20
