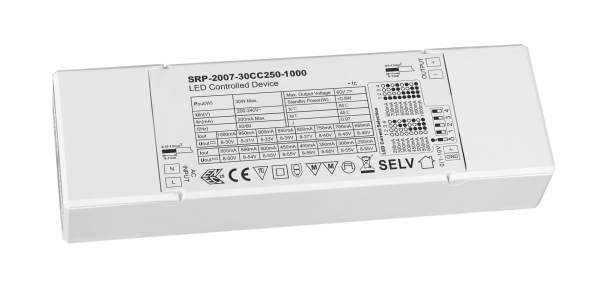

SRP-2007-30CC250-1000 is a 30w dimmable 0/1-10V LED light transformer with 1 channel constant current output and adjustable current from 250ma to 1000ma by DIP switches on the driver, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 83%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The dimmable driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional.
Key Features
- Dimmable LED driver, dimming range 0.1%-100%
- Max. output power 30W
- 1channel 250-1000mA constant current output
- Dips to set the operation current
- Class Ⅱ power supply, full isolated plastic case
- High power factor and efficiency
- To control tunable white LED lighting
- Built-in 0/1-10V interface, switch and dimming function integrated.
- Compatible with universal 0/1-10V signal
- IP20 rating, suitable for indoor LED lighting applications
- 5 years warranty
