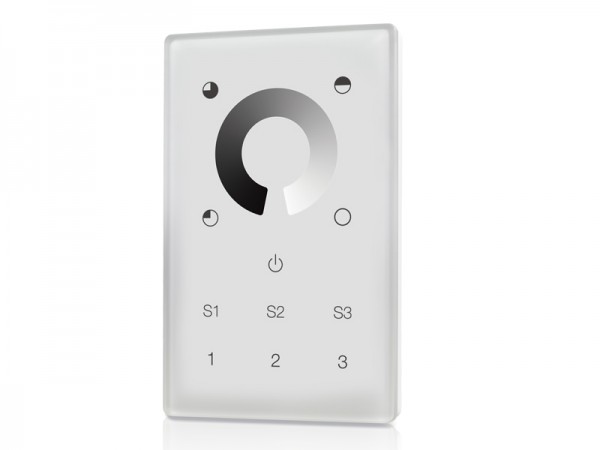

SR-ZV9001T3-DIM-US is a touch control Z-Wave Plus certified wall controller (Z Wave dimmer switch) for single color LED lighting. As a Z-Wave secondary controller, it is a z wave dimmer switch which can be added to z-wave network and removed from z-wave network by z-wave primary (master) controllers or gateway and control z-wave devices that are added to the network. As a secondary controller, it supports 4 groups for associations, a lifeline group association to primary (master) controller and 3 groups association to devices, the group association to devices supports maximum 5 Z-wave devices per group. It is a universal z-wave slave which can be compatible with universal z-wave primary controller or gateway. The wireless controller is compatible with single color z wave device SR-ZV9101FA-DIM and different frequencies are available for different countries or areas. The signal transmit distance can be up to 30m. The controller supports group and scene storage and recall functions. It is easy to install on the wall and available in standard US size.
Key Features
- Touch control Z-Wave Plus certified wall controller
- Source-routed Mesh Network Architecture
- Each device works as a node
- All Nodes Are Transceivers
- Each Z-wave Network Allows Up to 232 Devices
- Actively route around and circumvent obstacles or radio dead spots
- Wireless Synchronization to Drastically Increase Control Distance
- Devices can communicate to one another by using intermediate nodes
- Added or removed by primary controllers or gateway
- Supports 1 lifeline group association to master controller
- Supports 3 groups association to z-wave devices, maximum 5 devices per group
- Compatible with universal z-wave primary controller or gateway
- Supports group, scene storage and recall functions
