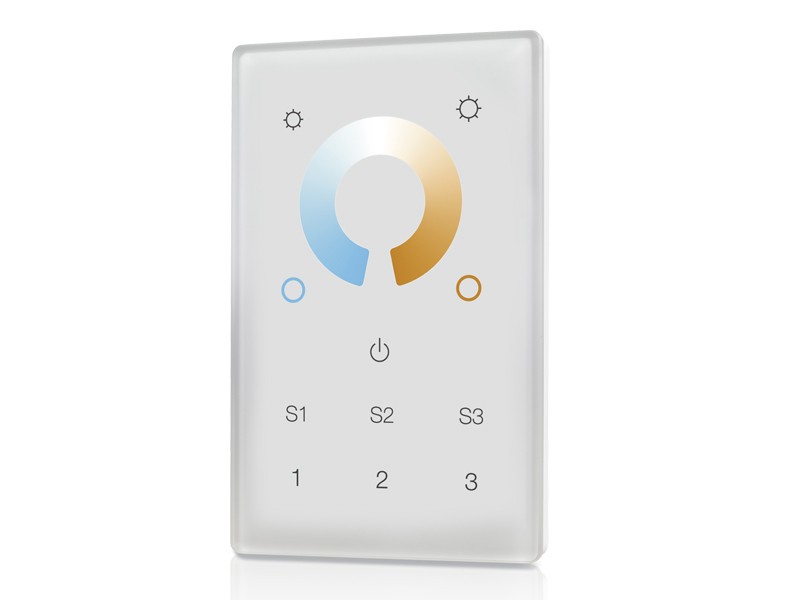

SR-ZG9001T3-CCT-US is a dual color ZigBee touch remote controller that enables switch, dimming and color temperature control and works with a ZigBee gateway/coordinator, it shall join ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee touch panel supports 3 groups for binding lighting devices and enables to control dual color ZigBee lighting devices, and each touch panel can bind max. 30 devices. 3 scenes can be saved and recalled for each group. it is designed with AC100-240V power input. Ultra sensitive glass panel with full touch control enables smooth switch, dimming and color adjustment operation.
The ZigBee touch dimmer can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard.
Standard US size is available and compatible with existing wall boxes for easy installation.
Key Features
- Dual color CCT ZigBee touch remote controller
- Robust, reliable ZigBee PRO networking
- 2.4 GHz global operation
- 100-240VAC power input
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway/Coordinator products
- Compatible with universal dual color ZigBee lighting devices
- Highly scalable solutions for thousands of devices
- Supports 3 groups for binding lighting devices
- Each touch panel can bind max. 30 devices
- 3 scenes can be saved and recalled for each group
- Standard US size available
