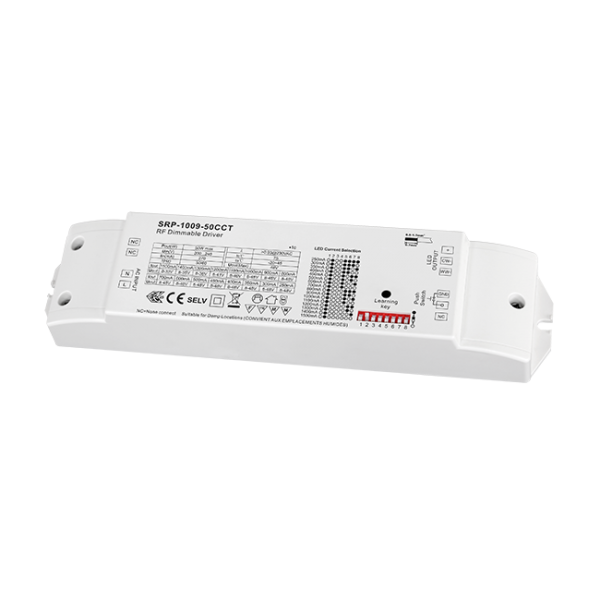

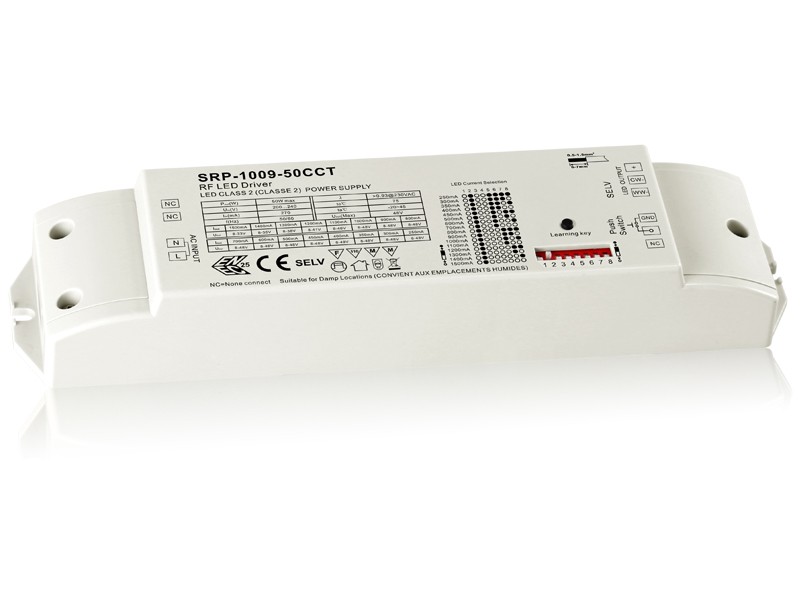

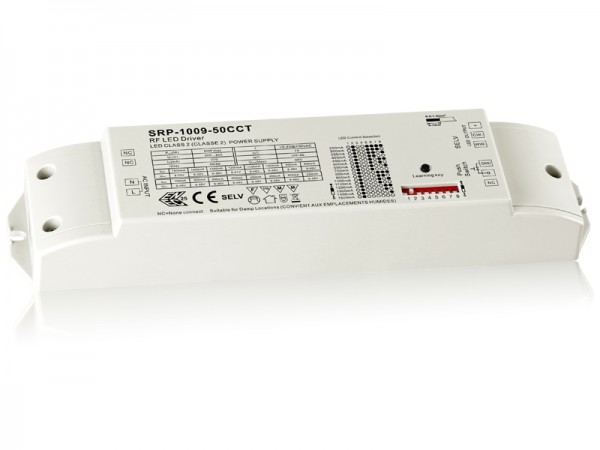

- 2 Channels Constant Current Dimmable 50w LED Driver with RF SRP-1009-50CCT
SRP-1009-50CCT is a Dimmable 50w LED Driver with 2 channels constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for CCT LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The LED driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. Plus it has push dim function while being connected with a push switch.
Key Features
Part No. | Input Voltage | Output Current | Maximum Output Power | Output Voltage Range | Dimension (mm) |
---|---|---|---|---|---|
SRP-1009-50CCT | 200-240VAC | 250ma~1500ma | 50W | 8-48VDC | 50*210*32 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-1009-50CCT User Manual
