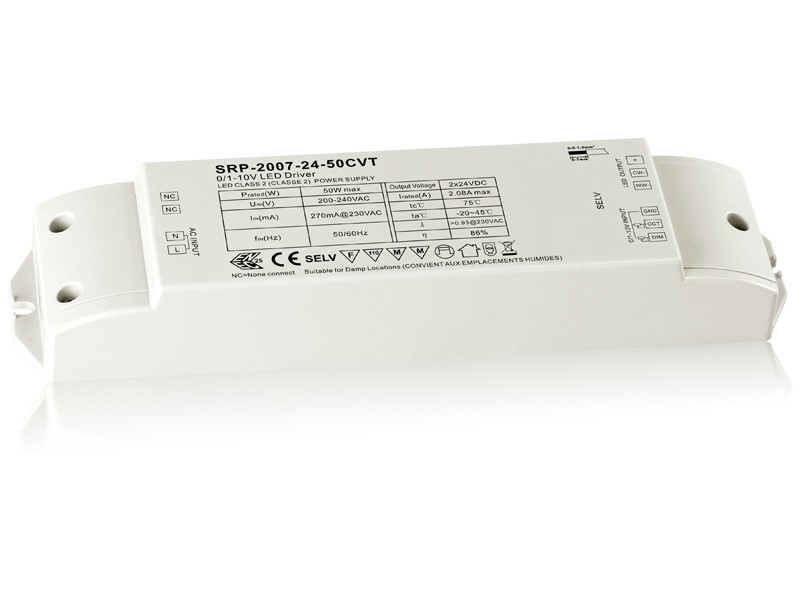

2 Channels 50W Dimmable 12V LED Driver with 1-10V Interface SRP-2007-50W-CVT

Features

SRP-2007-50W-CVT is a 50w dimmable constant voltage LED driver with 1-10v interface and 2 channels 12VDC or 24VDC output, which enables it to be suitable for CCT LED lights with different voltage. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The dimmable driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional.

Key Features

  • Dimmable Constant Voltage LED Driver, Max. output power 50W
  • 2 channels 12VDC or 24VDC constant voltage output
  • Class Ⅱ power supply, full isolated plastic case
  • Rubycon capacitors
  • Built-in active PFC function
  • High power factor and efficiency, PF > 0.9, Efficiency > 85%
  • Controlled via 1-10v control unit and can be compatible with universal 1-10v signal
  • 0-10v version is optional
  • To control constant voltage CCT LED lighting
  • Smooth and deep dimming to 0.1% without flickering, no buzzing noise
  • IP20 rating, suitable for indoor LED lighting applications
