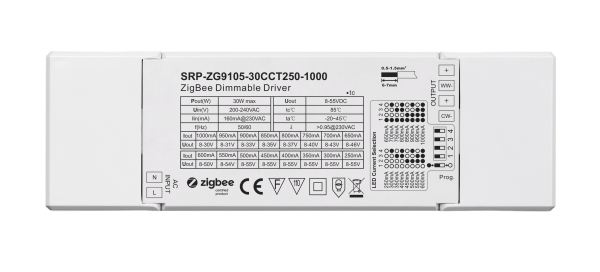

SRP-ZG9105-30CCT250-1000 is a Dimmable 30w LED Driver with 2 channels constant current output and adjustable current from 250ma to 1000ma by DIP switches, which enables it to be suitable for CCT LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The LED driver is designed with ZigBee 3.0 control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The drivers can be compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
- Dimmable LED driver for tunable white, ZigBee device based on ZigBee 3.0 protocol
- Max. output power 30W total, 2 channels 250-1000mA constant current output
- Class Ⅱ power supply, full isolated plastic case
- Built-in active PFC function, high power factor and efficiency
- Amplitude dimming (PWM dimming under 1%)
- Deep and smooth dimming to 0.1%, flicker free
- Standby power consumption less than 0.5W，meet latest ERP requirements
- Enables to control ON/OFF, light intensity and CCT LED lights
- ZigBee end device that supports Touchlink commissioning
- Can directly pair to a compatible ZigBee remote via Touchlink
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power switches
- Compatible with universal ZigBee gateway products
- Compatible with universal CCT ZigBee remotes
- Waterproof grade: IP20, suitable for indoor LED lighting applications
- 5 years warranty
