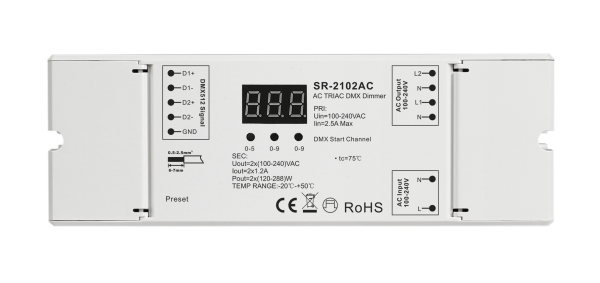

The SR-2102AC is a Triac DMX512 dimmer designed with 100-240VAC input and 100-240VAC output and safe and reliable full isolation design to dim and switch single color LED lamps, traditional incandescent and halogen lights. The DMX512 dimmer is designed with standard DMX512 compliant control interface with digital numeric digital display to set and show DMX address freely. The AC dimmer is both triac dimmable and mosfet dimmable and comes with 2 channel and maximum 1.2A per channel output. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The DMX512 triac dimmer can be compatible with a variety of DMX512 masters.
Key Features
- Safe and reliable full isolation design
- 100-240VAC input and 100-240VAC output
- 2 channel, maximum 1.2A per channel output
- Standard DMX512 compliant control interface with numeric digital display to set and show DMX address freely
- Triac dimmable and Mosfet dimmable
- Leading edge dimming and trailing edge dimming both available
- Great compatibility with a variety of DMX512 masters
- Innovative minimum brightness setting function
- To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights
Specifications
Part No. | Input Voltage | Output Current | Output Power | Load type | Dimension (mm) |
SR-2102AC | 100-240VAC | 2CH, 1.2A/CH | 240-576W | IncandescentHv-halogen lampsDimmable LED lamps | 59*170*29 |
Compatible DMX512 Masters
Control Type | Controller Model |
Wall Mounted Touch | SR-2202T1, SR-2202T2, SR-2830ADMX |
Wall Mounted Rotary | SR-2202 |
Product Dimension
Wiring Diagram with Dimmable LED Light
Wiring Diagram with Dimmable LED Driver
Download Center
To know further details of this product, please download the following user manual.
SR-2102AC User Manual
