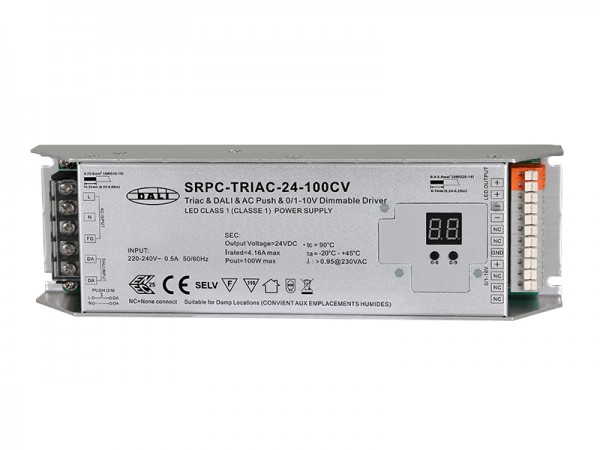

100W Triac Dimming Driver With 4 Dimming Interfaces In 1 SRPC-TRIAC-24-100CV

SRPC-TRIAC-24-100CV is an ENEC approved 100W triac dimmable LED driver with 1 channel 24VDC constant voltage output. It is designed with 200-240VAC input and full isolated metal casing. The triac dimming driver is designed with DALI, Push, Triac, 0/1-10V 4 dimming interfaces in 1, which enables it to work with different control systems. PWM digital dimming enables smooth dimming to 1% with no flicker and noise. Power factor of the driver can be over 0.9 and efficiency is higher than 91%. 1 DALI address can be automatically assigned by DALI masters. Complying with IEC 62386-101, IEC 62386-102, IEC 62386-207, this DALI driver is compatible with most DALI systems in the market. The Triac LED dimmable driver 24V can be compatible with universal Triac dimmers. While selecting 0/1-10V interface, it is compatible with universal 0/1-10V dimmers.

Key Features

• Metal casing LED driver
• ENEC approved
• With DALI, Push, Triac, 0/1-10V 4 dimming interfaces in 1
• 1 channel 24VDC constant voltage output, max. 100W
• Enables to control single color LED lighting
• Class 1 power supply, full isolated metal casing case
• Rubycon capacitors
• Built-in two-stage active PFC function
• High power factor and efficiency, PF > 0.95, Efficiency > 91%
• Complies to IEC 62386-101, IEC 62386-102, IEC 62386-207
• Compatible with universal DALI masters that support DT6 commands
• Compatible with universal Triac dimmers
• Compatible with universal 0/1-10V dimmers
• PWM digital dimming output
• Smooth and deep dimming to 1% without flickering, no buzzing noise
• IP20 rating, suitable for indoor LED lighting applications
