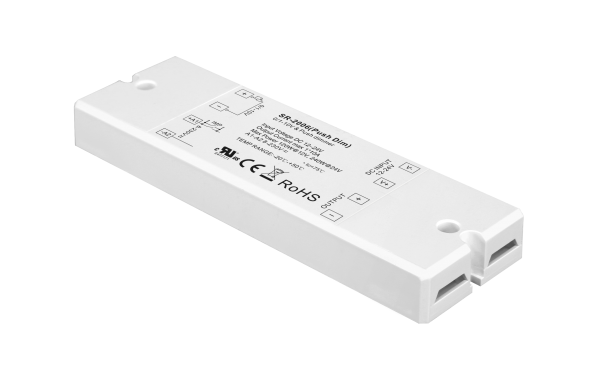

The SR-2006 (Push Dim) is a ultra-pro mini size push dimmer that supports both AC and DC input push switch and designed with 1 channel 12-24VDC constant voltage output. The push dimmer features great compatibility with universal 8V-230V input push switch with high current output of up to 10A/CH. It also features 0/1-10V dimmer function with 1 channel 0/1-10v signal input and 1 channel PWM output and can be compatible with 0/1-10v signal from other international incorporations.
Key Features
- Ultra-pro Push Dimmer Function.
- Supports both AC and DC input push switch.
- Great compatibility with universal 8V-230V input push switch
- 1 channel 12-24VDC constant voltage output.
- Mini size, high output current, up to 10A/CH.
- 0/1-10V dimmer function with 1 channel 0/1-10v signal input and 1 channel PWM output.
- Compatible with 0/1-10v signal from other international incorporations.
Function Introduction
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) |
SR-2006 (Push Dim) | 12-24VDC | 1CH, 10A/CH | 100-240W | Constant Voltage | 46.5*145*16 |
Product Dimension
Wiring Diagram For DC Push Switch
Wiring Diagram For AC Push Switch
Wiring Diagram For 0/1-10V Signal
