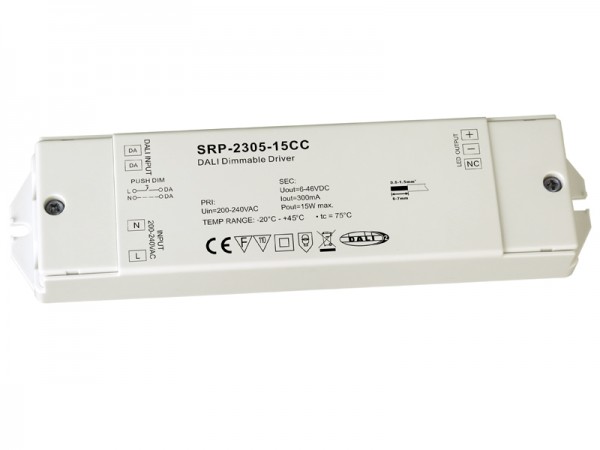

- 1 Channel Constant Current Dimmable DALI LED Driver SRP-2305-15CC
SRP-2305-15CC is a 15w dimmable LED DALI driver with 1 channel constant current output and adjustable current from 100ma to 900ma by factory setting, which enables it to be suitable for LED lights with different current. Factory default is 350mA. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 80%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DALI address can be automatically assigned by DALI masters. Complying with IEC62386-101, 102, 207, this DALI driver is compatible with universal DALI masters.
Key Features
Part No. | Input Voltage | Output Current | Maximum Output Power | Output Voltage Range | Dimension (mm) |
---|---|---|---|---|---|
SRP-2305-15CC | 200-240VAC | 350ma | 15W | 8-46VDC | 53.4*166*23 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2305-15CC User Manual
