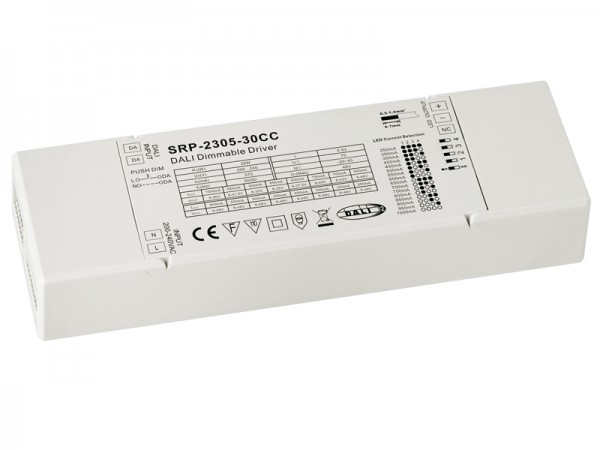

- 1 Channel Constant Current DALI Dimmable LED Driver SRP-2305-30CC
SRP-2305-30CC is a 30w DALI dimmable LED driver with 1 channel constant current output and adjustable current from 250ma to 1000ma by DIP switches on the driver, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 83%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be automatically assigned by DALI masters. Complying with IEC62386-101, 102, 207, this DALI driver is compatible with universal DALI masters.
Key Features
Part No. | Input Voltage | Output Current | Maximum Output Power | Output Voltage Range | Dimension (mm) |
---|---|---|---|---|---|
SRP-2305-30CC | 200-240VAC | 250ma-1000ma | 30W | 8-48VDC | 53.4*170*28 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2305-30CC User Manual
