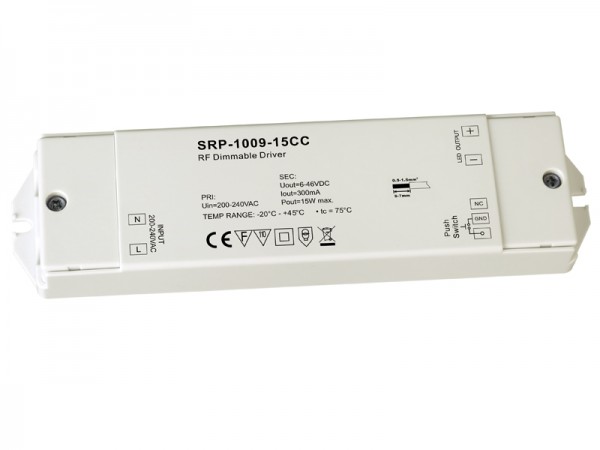

- 1 Channel Constant Current 350mA Dimmable LED Driver With RF SRP-1009-15CC
SRP-1009-15CC is a 15w 350mA dimmable LED driver with 1 channel constant current output and adjustable current from 100ma to 900ma by factory setting, which enables it to be suitable for LED lights with different current. Factory default is 350mA. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 80%. It enables smooth dimming without flickering and buzzing noise. The LED driver is designed with SR-1009 series RF control interface and can be compatible with a variety of RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. Plus it has push dim function while being connected with a push switch. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise.
Key Features
Part No. | Input Voltage | Output Current | Maximum Output Power | Output Voltage Range | Dimension (mm) |
---|---|---|---|---|---|
SRP-1009-15CC | 200-240VAC | 350ma | 15W | 8-46VDC | 53.4*166*23 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-1009-15CC User Manual
