- 1 Channel Constant Current 1-10V LED Light Transformer SRP-2007-30W-CC
SRP-2007-30W-CC is a 30w dimmable 1-10V LED light transformer with 1 channel constant current output and adjustable current from 250ma to 1000ma by DIP switches on the driver, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 83%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The dimmable driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional.
Key Features
Part No. | Input Voltage | Output Current | Maximum Output Power | Output Voltage Range | Dimension (mm) |
---|---|---|---|---|---|
SRP-2007-30W-CC | 200-240VAC | 250ma-1000ma | 30W | 8-48VDC | 53.4*170*28 |

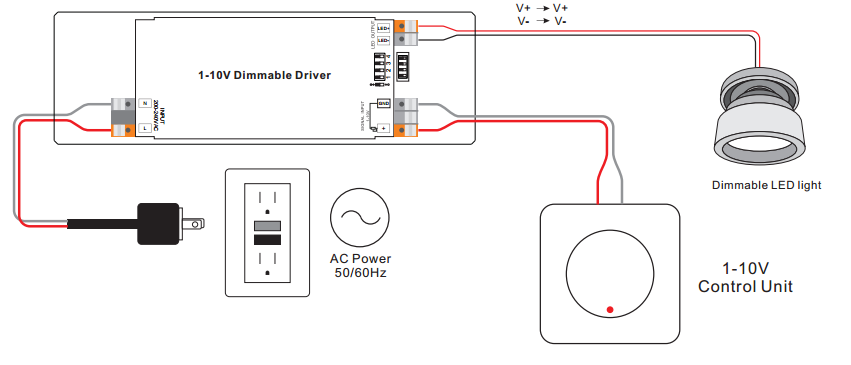

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2007-30W-CC User Manual
