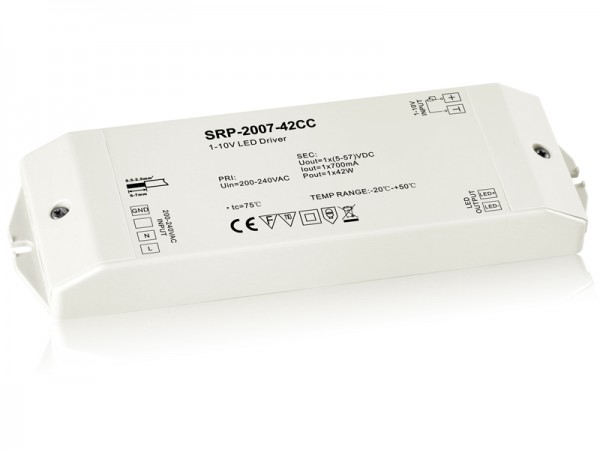

SRP-2007-42W-CC is a 42w dimmable PWM LED driver with 0-10V Interface and 1 channel constant current output and adjustable current from 100ma to 900ma by factory setting, which enables it to be suitable for LED lights with different current. Factory default is 700mA. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 83%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The pwm driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional.
Key Features
- Dimmable PWM LED Driver with 0-10V Interface, Max. output power 42W
- 1 channel constant current output, 100mA ~ 900mA Adjustable by factory setting, 700mA by default
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 83%
- Controlled via 1-10v control unit and can be compatible with universal 1-10v signal
- 0-10v version is optional
- To switch and dim single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
