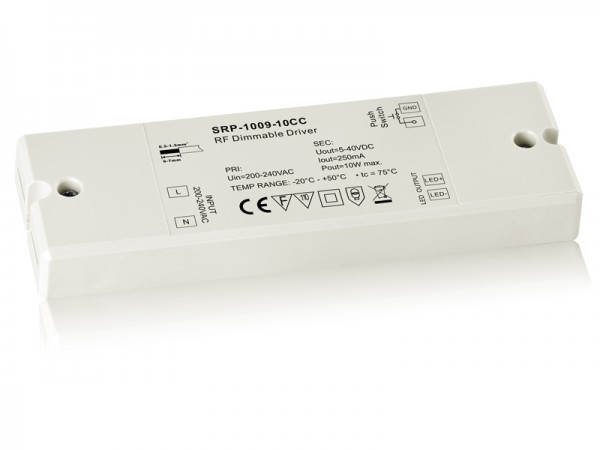

SRP-1009-10CC is a 10w dimmable LED power supply with 1 channel constant current output and adjustable current from 100ma to 250ma by factory setting, which enables it to be suitable for LED lights with different current. Factory default is 250mA. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 80%. It enables smooth dimming without flickering and buzzing noise. The power supply is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. Plus it has push dim function while being connected with a push switch. It enables smooth and deep dimming to 0.1% without flickering, no buzzing noise.
Key Features
- Dimmable LED power supply, Max. output power 10W
- 1 channel constant current output, 100mA ~ 250mA Adjustable by factory setting, 250mA by default
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 80%
- RF control interface and can be compatible with a variety of SR-1009 series RF remotes
- To switch and dim single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- Can be controlled via APP installed on IOS or Android mobile devices while working with a WiFi-RF transmitter
- Push dim function while being connected with a push switch
- IP20 rating, suitable for indoor LED lighting applications
- Radio frequency available: 869.5/434/916.5MHz
Download Center
To know further details of this product, please download the following user manual.
SRP-1009-10CC User Manual
