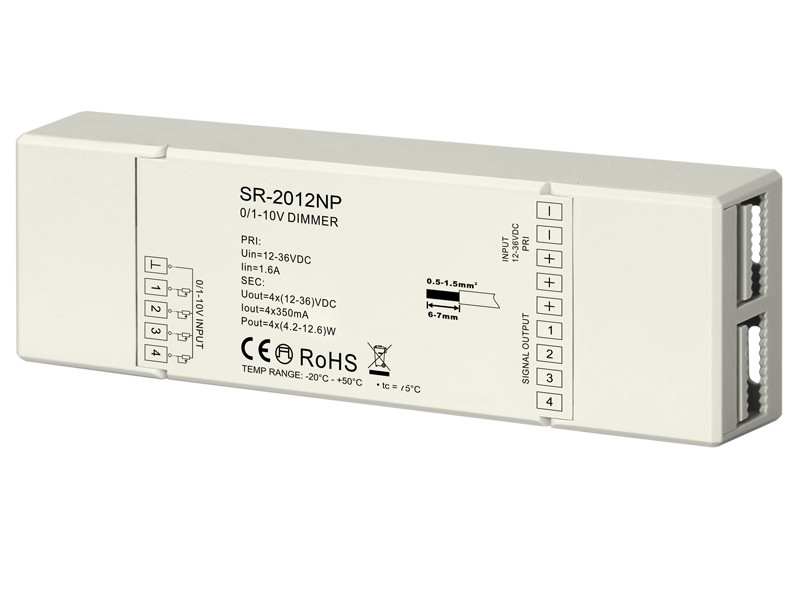

The SR-2012P is an easy connection 0/1-10V constant current dimmer with 4 channel, 0.35A per channel output, which receives standard 1-10V dimming signal and outputs PWM signal and designed with newly updated outer shell that features easy connection terminal without screw to ensure easy and fast connection. The dimmer switch is designed with 4 channel 1-10V input and 4 channel PWM output. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering.
Key Features
- Constant current 0/1-10V LED dimmer with 4 channel, 0.35A per channel output
- Designed with newly updated outer shell which features easy connection terminal without screw to ensure easy and fast connection
- Analog dim driver, receives standard 1-10V dim signal input
- 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes
- 4 channel 1-10V input and 4 channel PWM output
- 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering
- To work with power repeater to expand output unlimitedly
Download Center
To know further details of this product, please download the following user manual.
SR-2012P User Manual
