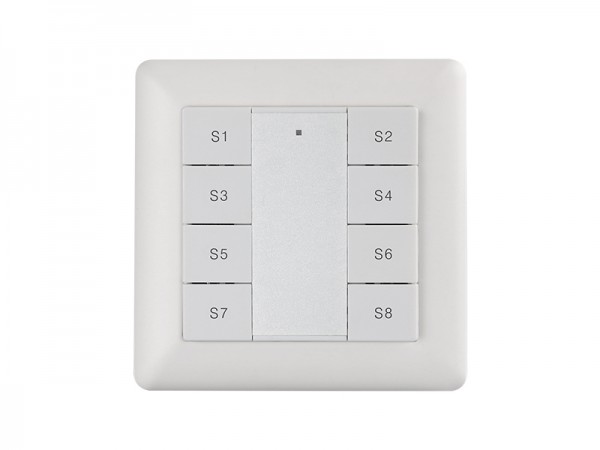

Push button DALI panel SR-2422K8-G1-S8 is a single color DALI controller that controls 8 scene addresses. The scenes to be controlled and the group of devices that the scenes are assigned to can be set manually by 2 rotary switches on the back. All DALI devices on the circuit can be controlled by the panel through broadcast. 8 predefined scenes can be assigned and recalled to the selected group. It is easy to use and no configuration by computer required. The DALI controller can be compatible with all universal DALI master controllers. Compatible with existing standard size frames from Berker, Merten, Gira, the DALI push button controller can be wall mounted easily.
Key Features
- Single Color Push Button DALI Control Panel
- 8 Button Design with Scene Control
- Control 8 Scene Addresses
- Control of All DALI Devices on the circuit through Broadcast
- Enable to Set Start Group Number and Scene Number Manually by 2 Rotary Switches on the back
- 8 predefined scenes can be assigned and recalled to the selected group
- Easy to Use, No Configuration by Computer Required
- Compatible with All Universal DALI Masters
- Easy Installation, Compatible with Existing Standard Size Frames
