Product Description

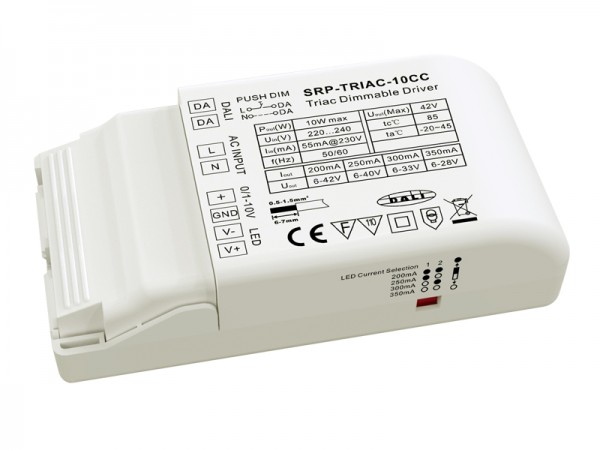

SRP-TRIAC-10CC is an ENEC approved 10W triac dimmable LED driver with 1 channel constant current output and adjustable current from 200mA to 350mA by DIP switches, which enables it to be suitable for different LED lights. It is designed with 200-240VAC input. The triac dimming driver is designed with DALI, Push, Triac, 0/1-10V 4 dimming interfaces in 1, which enables it to work with different control systems. The LED driver adopts amplitude dimming output instead of PWM output to ensure real flicker free. Power factor of the driver can be over 0.9 and efficiency is higher than 83%. It enables smooth and deep dimming to 1% without flickering and buzzing noise. 1 DALI address can be automatically assigned by DALI masters. Complying with IEC 62386-101, IEC 62386-102, IEC 62386-207, this DALI driver is compatible with most DALI systems in the market. The Triac dimming driver can be compatible with universal Triac dimmers. While selecting 0/1-10V interface, it is compatible with universal 0/1-10V dimmers.
Key Features
- ENEC approved
- Mini size constant current LED driver for built-in applications
- With DALI, Push, Triac, 0/1-10V 4 dimming interfaces in 1
- 1 channel constant current output, max. output power 10W
- Output current 200mA-350mA selectable by DIP switch
- Enables to control single color LED lighting
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 83%
- Complies to IEC 62386-101, IEC 62386-102, IEC 62386-207
- Compatible with universal DALI masters that support DT6 commands
- Compatible with universal Triac dimmers
- Compatible with universal 0/1-10V dimmers
- Amplitude dimming, no PWM output, real flicker free
- Smooth and deep dimming to 1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
