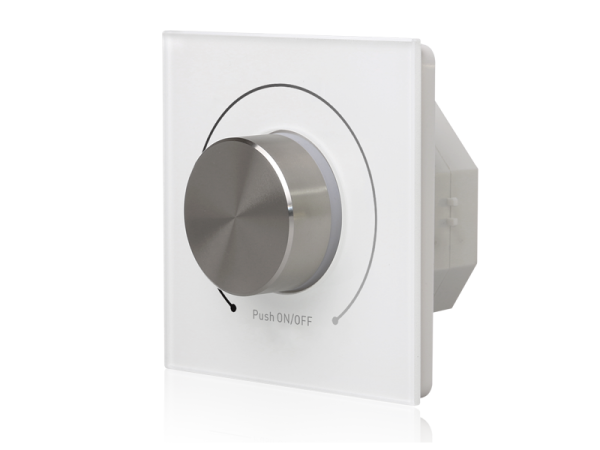

- DALI MCU Rotary Dimmer SR-2400RB-DIM
The SR-2400RB-DIM is a reliable and easy DALI MCU rotary dimmer with DALI output for dimming of luminaires or transformers with DALI interface. It is a DALI manual control unit designed with a built-in DALI power supply with 100-240VAC wide input which can power DALI bus while connected to AC mains. While not connected to AC mains, the rotary dimmer can be powered by DALI bus. The DALI manual control unit is updated with a standard 4mm diameter rotary axis that is perfect to use in Europe. Each MCU can power up to 50 DALI ECGs with max. 100mA DALI output. Maximum 2 active DALI MCUs powered by AC mains and 2 passive MCUs powered by DALI bus can connect to DALI bus and control up to 100 DALI ECGs for multiple control points. Dimming solutions are easy and reliable, no DALI addressing required. The manual control unit can save current brightness as scene and remember last scene/brightness when turn on next time. Double click the knob enables users to adjust the brightness to 100%. Compatible with common European size accessories, the DALI manual control unit is easy to install.
Key Features
Part No. | Operation Voltage | Output | Dimension (mm) |
---|---|---|---|
SR-2400RB-DIM | 100-240VAC/Provided by DALI Bus | DALI Signal | 80*80*53 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2400RB-DIM User Manual
