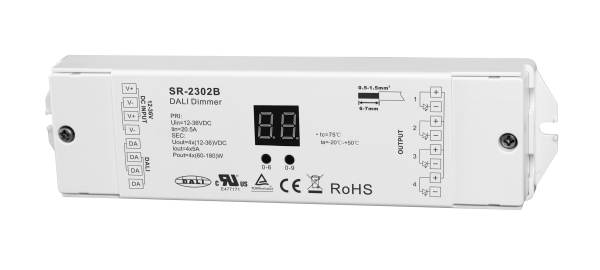

The DALI Dimmer SR-2302B is a constant voltage dimming controller with 4 channel, 5A per channel output, which complies to standard DALI protocol with 1 DALI address to control 4 channels synchronously. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 1 DALI address is available for 4 channels to work synchronously. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision.
Key Features
- DALI certified
- TUV CE certified
- Constant voltage DALI dimmer available in 12VDC, 24VDC, 36VDC output, 4 channel, 5A per channel output
- Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
- DALI address can be manually assigned and shown in numeric digital display or automatically assigned by master controller.
- 1 DALI address, 4 channels work synchronously.
- 0%-100% dimming range via logarithmic characteristic, perfect for human's vision.
- To work with LED lights to establish DALI lighting system.
- To work with power repeater to expand output unlimitedly.
Download Center
To know further details of this product, please download the following user manual.
SR-2302B User Manual
