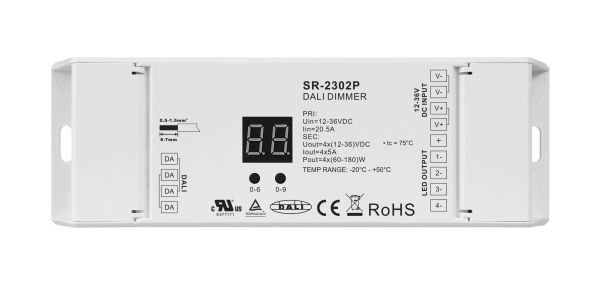

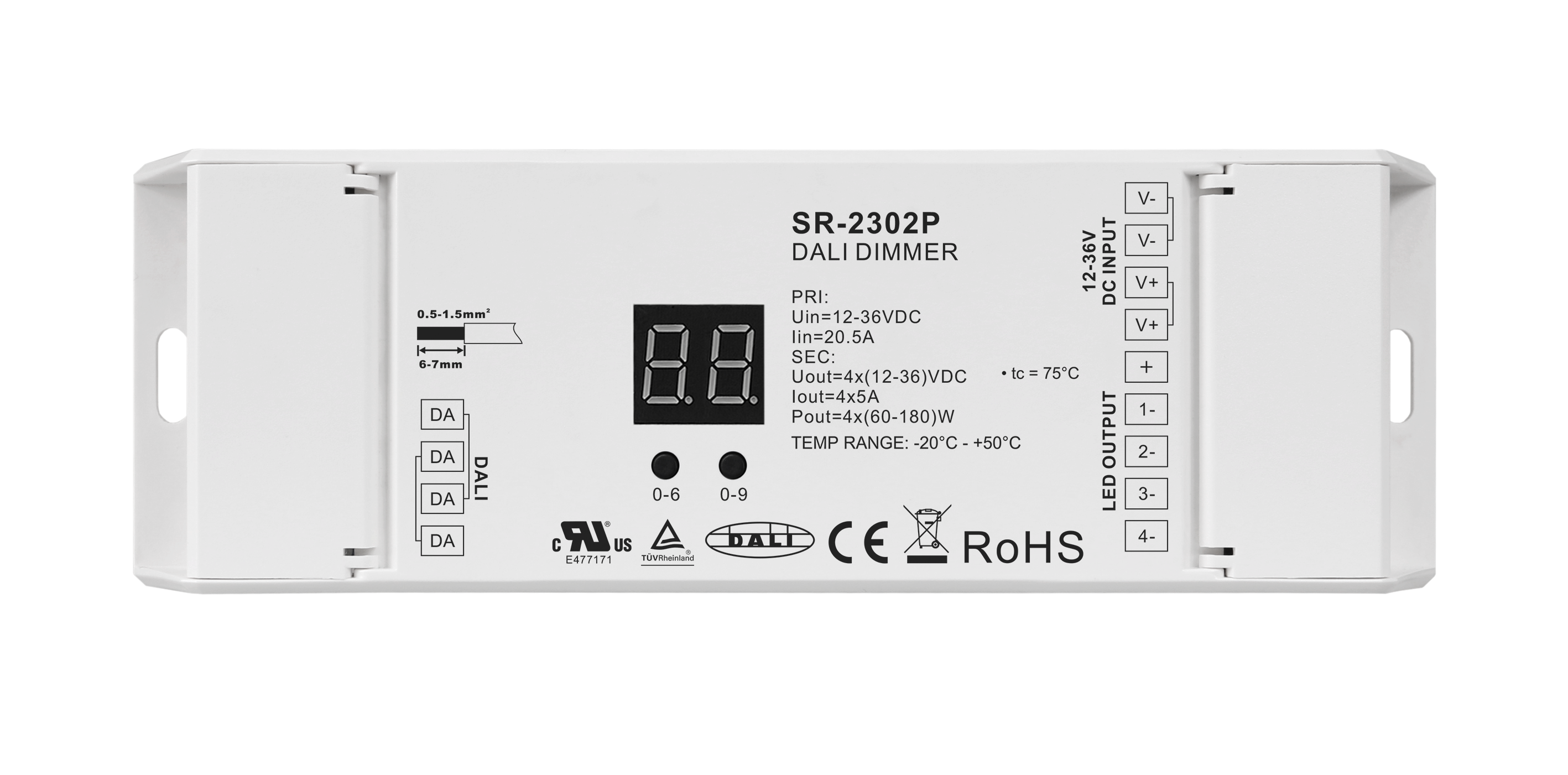

The DALI Dimmer SR-2302P is a constant voltage dimming controller with 4 channel, 5A per channel output, which complies to standard DALI protocol with 1 DALI address to control 4 channels synchronously. The DALI dimmer is designed with newly updated outer shell which features easy connection terminal without screw to ensure easy and fast connection. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 1 DALI address is available for 4 channels to work synchronously. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision. The DALI dimmer can be compatible with SR-2400TL, SR-2400TG, SR-2400TS, SR-2400LC, SR-2400GC, SR-2400SC and any other high quality DALI masters.
Key Features
- DALI certified
- TUV CE certified
- Constant voltage DALI dimmer available in 12VDC, 24VDC, 36VDC output, 4 channel, 5A per channel output
- Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
- Newly updated outer shell which features easy connection terminal without screw to ensure easy and fast connection.
- DALI address can be manually assigned and shown in numeric digital display or automatically assigned by master controller.
- 1 DALI address, 4 channels work synchronously.
- 0%-100% dimming range via logarithmic characteristic, perfect for human's vision.
- To work with LED lights to establish DALI lighting system.
- To work with power repeater to expand output unlimitedly.
- compatible with SR-2400TL, SR-2400TG, SR-2400TS, SR-2400LC, SR-2400GC, SR-2400SC and any other high quality DALI masters.
Download Center
To know further details of this product, please download the following user manual.
SR-2302P User Manual
