- AC DMX512 Switch with Stand Alone Mode SR-2703B
The SR-2703B is an AC DMX512 switch that complies with standard protocol DMX512(1990) with AC 100-240V wide input and output and 3 channel output. The DMX address can manually assigned and shown on the numeric digital display or automatically assigned by the master controller. DMX512 master controller is to control power on/off to cater for unwanted dimming lighitng system. The AC DMX512 switch can be compatible with a variety of DMX512 master controllers.
Key Features
Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) |
---|---|---|---|---|---|
SR-2703B | 100-240VAC | 5A | 500W | Hv-halogen lamps, LED lamps, electronic ballast | 59*170*29 |

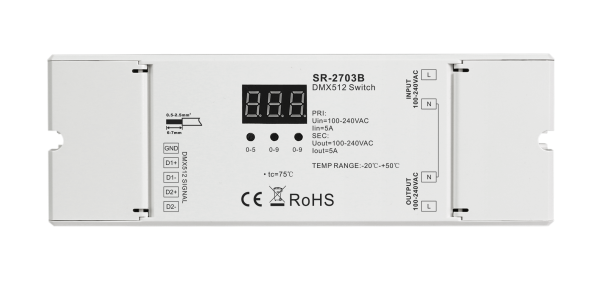

Product Dimension for SR-2703B
Wiring Diagram for 2703B
Download Center
To know further details of this product, please download the following user manual.
SR-2703B User Manual
